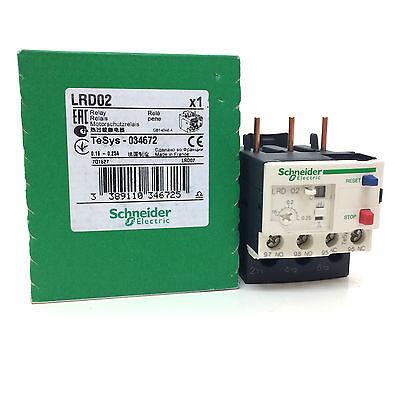

SCHNEIDER – LRD02 – thermal overload – 0.16…0.25 A – class 10A

READY TIPE LAMA

Main
Range
TeSys
TeSys Deca
Product name
TeSys LRD
TeSys Deca
product or component type
Differential thermal overload relay
Device short name
LRD
Relay application
Motor protection
Product compatibility
LC1D25
LC1D38
LC1D12
LC1D09
LC1D18
LC1D32
Network type
DC
AC
Thermal overload class
Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range
0.16…0.25 A
[Ui] rated insulation voltage
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
