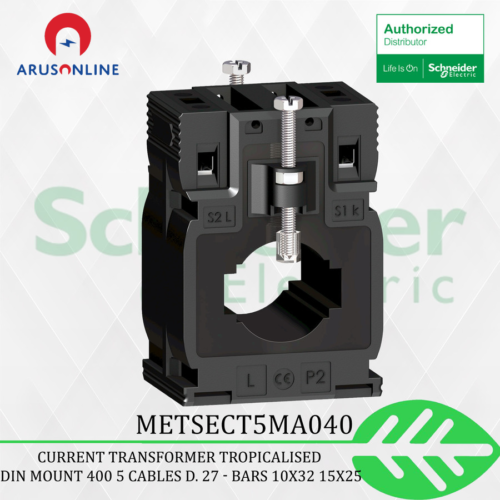

METSECT5MA040 SCHNEIDER CT RASIO tropicalised DIN mount 400/5

METSECT5MA040 SCHNEIDER CT RASIO tropicalised DIN mount 400/5

range : PowerLogic
product name : CT
product or component type ; Current transformer
secondary current : 5 A
accuracy class :
Class 0.5 at 10 VA
Class 1 at 12 VA
[In] rated current : 400 A
current transformer type : Tropicalised for busbar and cable
current transformer ratio : 400/5
[Ith] conventional free air thermal current : 24 kA
dynamic withstand current ; 2.5 Ith
maximum safety factor : 5
[Ue] rated operational voltage :< 720 V AC 50/60 Hz
[Ui] rated insulation voltage : 3 kV
