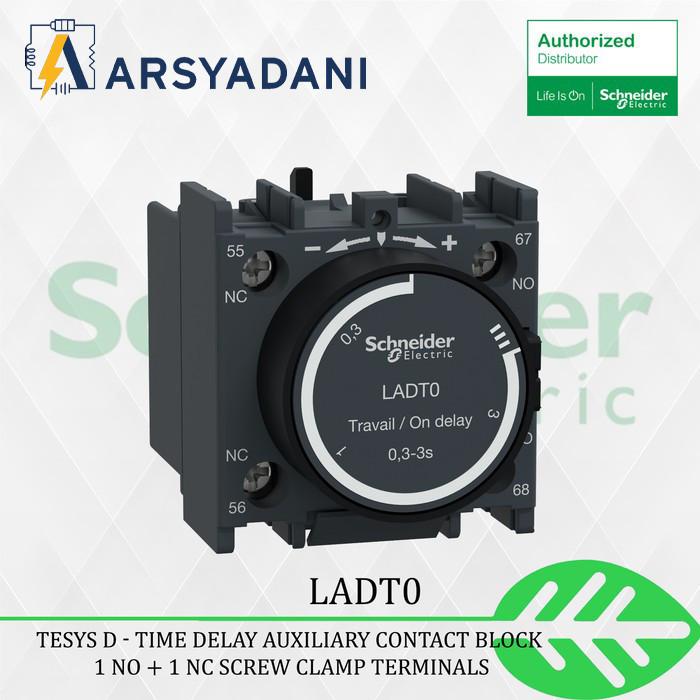

LADT0 – time delay auxiliary contact block Schneider 1 NO + 1 NC

time delay auxiliary contact block Schneider 1 NO + 1 NC LADT0

range :
TeSys
TeSys Deca
product name :
TeSys D
TeSys Deca
product or component type : Time delay auxiliary contact block
range compatibility :
TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
mounting location : Front
pole contact composition : 1 NO + 1 NC
Contacts operation : Time delay
timer type : On delay
time delay range : 0.3…3 s
[Ue] rated operational voltage : 690 V AC 25…400 Hz
[Ie] rated operational current :
6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage :
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current : 10 A (at 60 C)
standards :
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
product certifications :
IECEE CB Scheme
UL
CSA
CCC
EAC
UKCA
