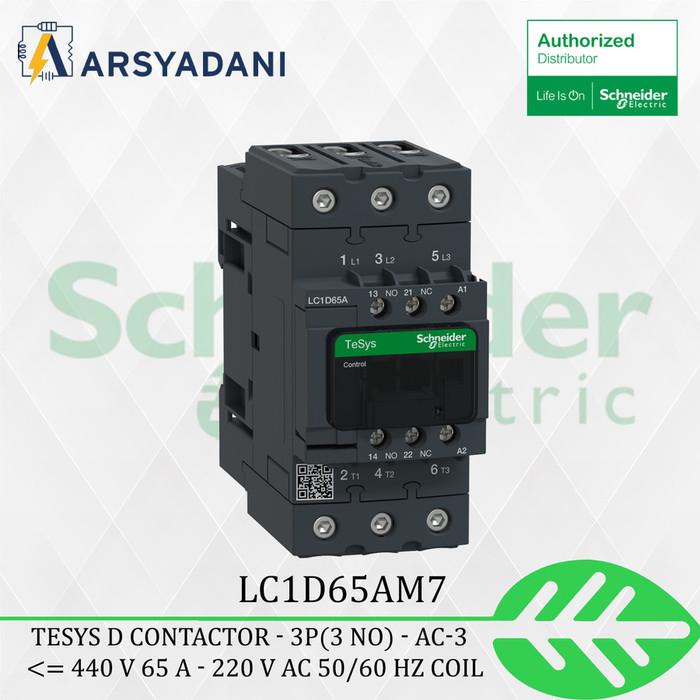

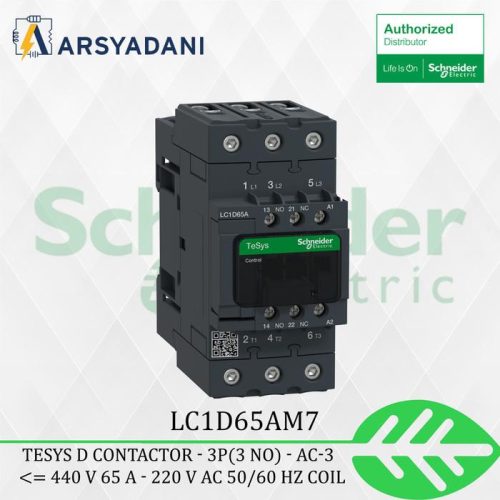

LC1D65AM7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 65 A – 220 V AC 50/60 Hz coil
range :
TeSys
TeSys Deca
product name :
TeSys D
TeSys Deca
product or component type : Contactor
device short name : LC1D
contactor application :
Motor control
Resistive load
utilisation category :
AC-4
AC-1
AC-3
AC-3e
poles description : 3P
power pole contact composition : 3 NO
[Ue] rated operational voltage :
Power circuit: <= 690 V AC 25…400 Hz
Power circuit: <= 300 V DC
[Ie] rated operational current :
80 A (at <60 C) at <= 440 V AC AC-1 for power circuit
65 A (at <60 C) at <= 440 V AC AC-3 for power circuit
65 A (at <60 C) at <= 440 V AC AC-3e for power circuit
motor power kW :
11 kW at 400 V AC 50/60 Hz (AC-4)
18.5 kW at 220…230 V AC 50/60 Hz (AC-3)
30 kW at 380…400 V AC 50/60 Hz (AC-3)
37 kW at 500 V AC 50/60 Hz (AC-3)
37 kW at 660…690 V AC 50/60 Hz (AC-3)
18.5 kW at 220…230 V AC 50/60 Hz (AC-3e)
30 kW at 380…400 V AC 50/60 Hz (AC-3e)
37 kW at 500 V AC 50/60 Hz (AC-3e)
37 kW at 660…690 V AC 50/60 Hz (AC-3e)
motor power HP (UL / CSA)
40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
5 hp at 115 V AC 50/60 Hz for 1 phase motors
10 hp at 230/240 V AC 50/60 Hz for 1 phase motors
20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
20 hp at 230/240 V AC 50/60 Hz for 3 phases motors
50 hp at 575/600 V AC 50/60 Hz for 3 phases motors
control circuit type : AC at 50/60 Hz
[Uc] control circuit voltage : 220 V AC 50/60 Hz
auxiliary contact composition : 1 NO + 1 NC
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947
overvoltage category : III
[Ith] conventional free air thermal current :
10 A (at 60 C) for signalling circuit
80 A (at 60 C) for power circuit
