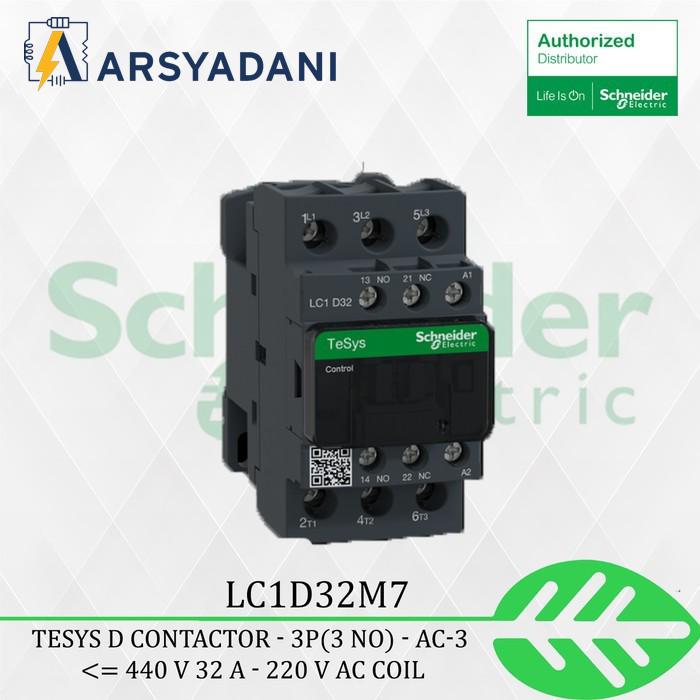

LC1D32M7 – contactor schneider tesys D 3P 32 A 220VAC Coil AC 440V

LC1D32M7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 220 V AC coil

range : TeSys
product name : TeSys D
product or component type : Contactor
device short name : LC1D
contactor application :
Resistive load
Motor control
utilisation category :
AC-4
AC-1
AC-3
poles description : 3P
power pole contact composition : 3 NO
[Ue] rated operational voltage :
Power circuit: <= 690 V AC 25…400 Hz
Power circuit: <= 300 V DC
[Ie] rated operational current :
32 A (at <60 C) at <= 440 V AC AC-3 for power circuit
50 A (at <60 C) at <= 440 V AC AC-1 for power circuit
motor power kW :
7.5 kW at 220…230 V AC 50/60 Hz (AC-3)
15 kW at 380…400 V AC 50/60 Hz (AC-3)
15 kW at 415…440 V AC 50/60 Hz (AC-3)
18.5 kW at 500 V AC 50/60 Hz (AC-3)
18.5 kW at 660…690 V AC 50/60 Hz (AC-3)
7.5 kW at 400 V AC 50/60 Hz (AC-4)
motor power HP (UL / CSA) ;
2 hp at 115 V AC 50/60 Hz for 1 phase motors
5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
10 hp at 230/240 V AC 50/60 Hz for 3 phases motors
20 hp at 460/480 V AC 50/60 Hz for 3 phases motors
30 hp at 575/600 V AC 50/60 Hz for 3 phases motors
control circuit type : AC at 50/60 Hz
[Uc] control circuit voltage : 220 V AC 50/60 Hz
auxiliary contact composition : 1 NO + 1 NC
