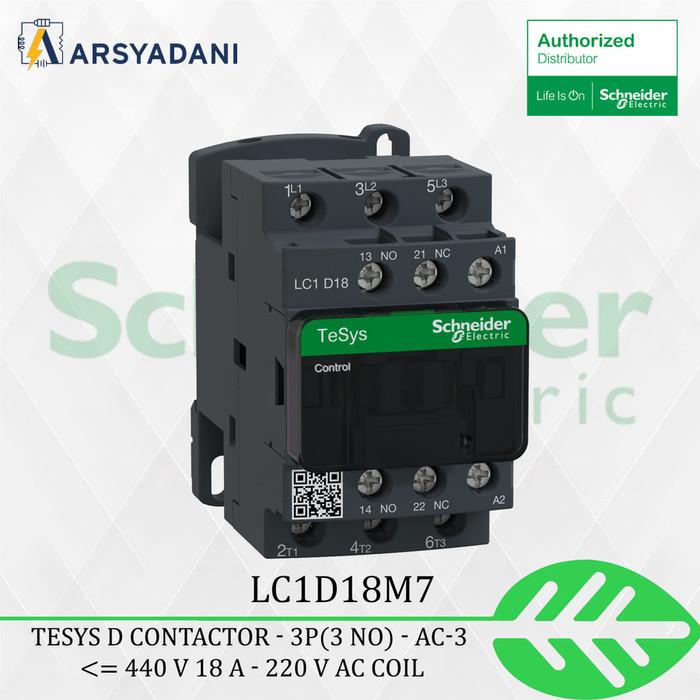

LC1D18M7 – Contactor schneider 3P 18A 220VAC TeSys D AC3

LC1D18M7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 18 A - 220 V AC coil range : TeSys product name : TeSys D product or component type : Contactor device short name : LC1D contactor application : Resistive load Motor control utilisation category : AC-1 AC-4 AC-3 poles description : 3P power pole contact composition : 3 NO [Ue] rated operational voltage : Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC [Ie] rated operational current : 18 A (at <60 C) at <= 440 V AC AC-3 for power circuit 32 A (at <60 C) at <= 440 V AC AC-1 for power circuit motor power kW : 4 kW at 220...230 V AC 50/60 Hz (AC-3) 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) 9 kW at 415...440 V AC 50/60 Hz (AC-3) 10 kW at 500 V AC 50/60 Hz (AC-3) 10 kW at 660...690 V AC 50/60 Hz (AC-3) 4 kW at 400 V AC 50/60 Hz (AC-4) motor power HP (UL / CSA) : 1 hp at 115 V AC 50/60 Hz for 1 phase motors 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors control circuit type : AC at 50/60 Hz [Uc] control circuit voltage : 220 V AC 50/60 Hz auxiliary contact composition : 1 NO + 1 NC Produk dijamin ASLI dan Bergaransi Jam Kerja: 09.00 - 16.00 Hari Kerja Senin s.d Jum'at (Sabtu, Minggu dan Hari Libur Nasional OFF ~ Tidak ada pengiriman dan slow response) Barang yang diorder setelah jam 14:00 akan di proses dan dikirim di hari kerja berikut nya (jika ada keperluan delivery khusus dapat chat kami atau wa di 087800017078)
