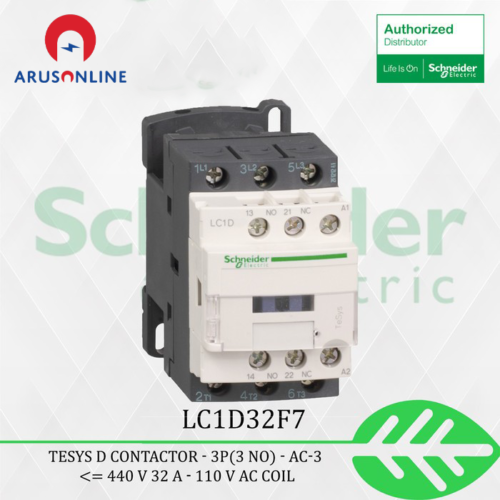

SCHNEIDER – LC1D32F7 – CTR – 32A AC3 15KW 1NO 1NC 110VAC –

LC1D32F7 – TeSys D contactor – 3P(3 NO) – AC-3 – lt;= 440 V 32 A – 110 V AC coil range : TeSys product name : TeSys D product or component type : Contactor device short name : LC1D contactor application : Resistive load Motor control utilisation category : AC-1 AC-3 AC-4 poles description : 3P power pole contact composition : 3 NO [Ue] rated operational voltage : Power circuit: lt;= 690 V AC 25…400 Hz Power circuit: lt;= 300 V DC [Ie] rated operational current : 32 A (at lt;60 °C) at lt;= 440 V AC AC-3 for power circuit 50 A (at lt;60 °C) at lt;= 440 V AC AC-1 for power circuit motor power kW : 7.5 kW at 220…230 V AC 50/60 Hz (AC-3) 15 kW at 380…400 V AC 50/60 Hz (AC-3) 15 kW at 415…440 V AC 50/60 Hz (AC-3) 18.5 kW at 500 V AC 50/60 Hz (AC-3) 18.5 kW at 660…690 V AC 50/60 Hz (AC-3) 7.5 kW at 400 V AC 50/60 Hz (AC-4) motor power HP (UL / CSA) : 2 hp at 115 V AC 50/60 Hz for 1 phase motors 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors 7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors 20 hp at 460/480 V AC 50/60 Hz for 3 phases motors 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors control circuit type : AC at 50/60 Hz [Uc] control circuit voltage : 110 V AC 50/60 Hz auxiliary contact composition : 1 NO + 1 NC Produk dijamin ASLI dan Bergaransi Jam Kerja: 09.00 – 16.00 Hari Kerja Senin s.d Jum #39;at (Sabtu, Minggu dan Hari Libur Nasional OFF ~
