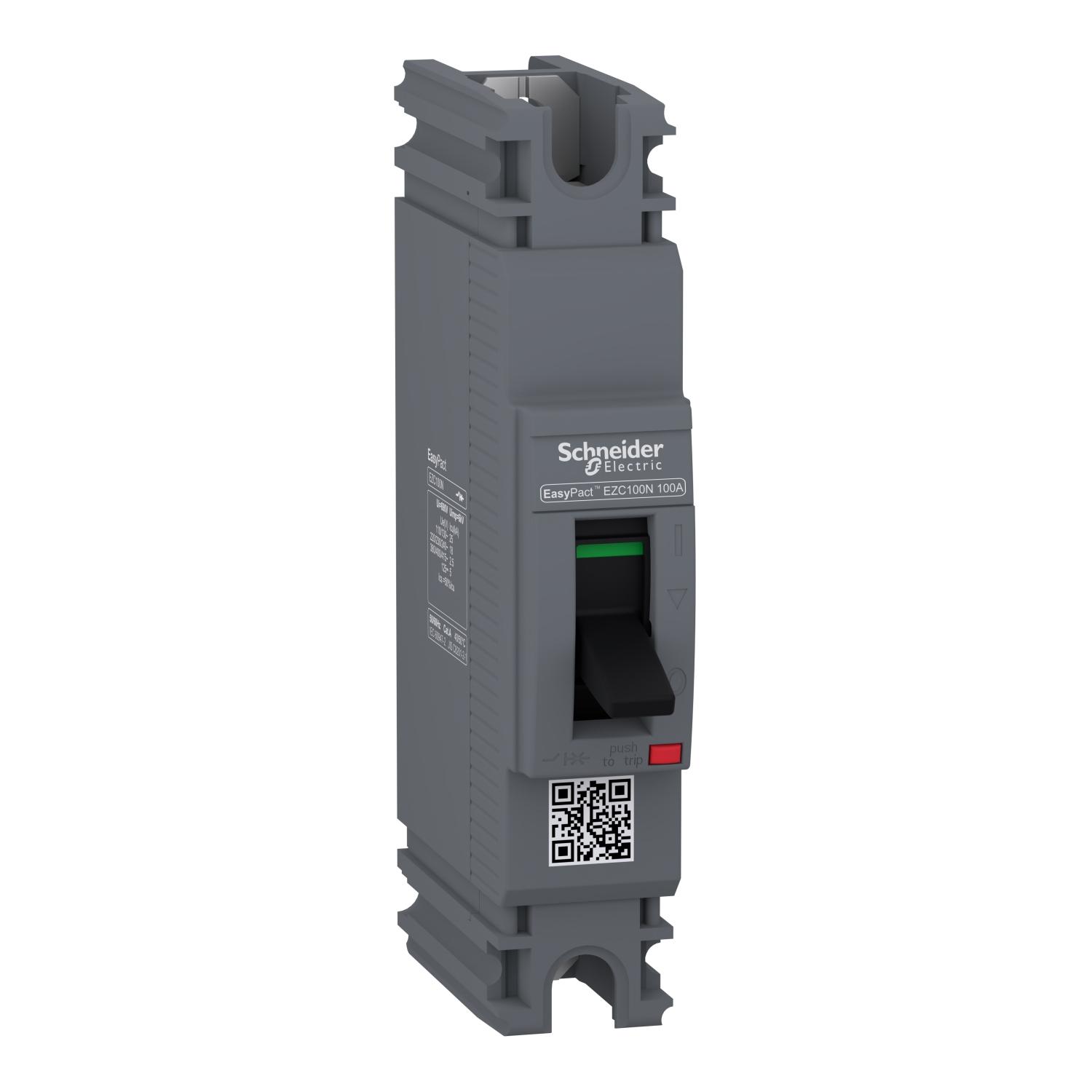

EZC100N1020 – circuit breaker Easypact EZC100N – TMD – 20 A – 1 pole 1d – Schneider Electric

Range of productEasyPactProduct or component typeCircuit breakerDevice short nameEasypact EZC100NCircuit breaker nameEasypact EZC100NDevice applicationDistributionPoles description1PProtected poles description1tNetwork typeDC
ACNetwork frequency50/60 Hz[In] rated current20 A at 40 °C[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2[Ue] rated operational voltage125 V DC conforming to IEC 60947-2
415 V AC 50/60 Hz conforming to IEC 60947-2Breaking capacity codeNBreaking capacity25 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
18 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2[Ics] rated service breaking capacity12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 125 V DC conforming to IEC 60947-2
9 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
1.25 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
1.25 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
