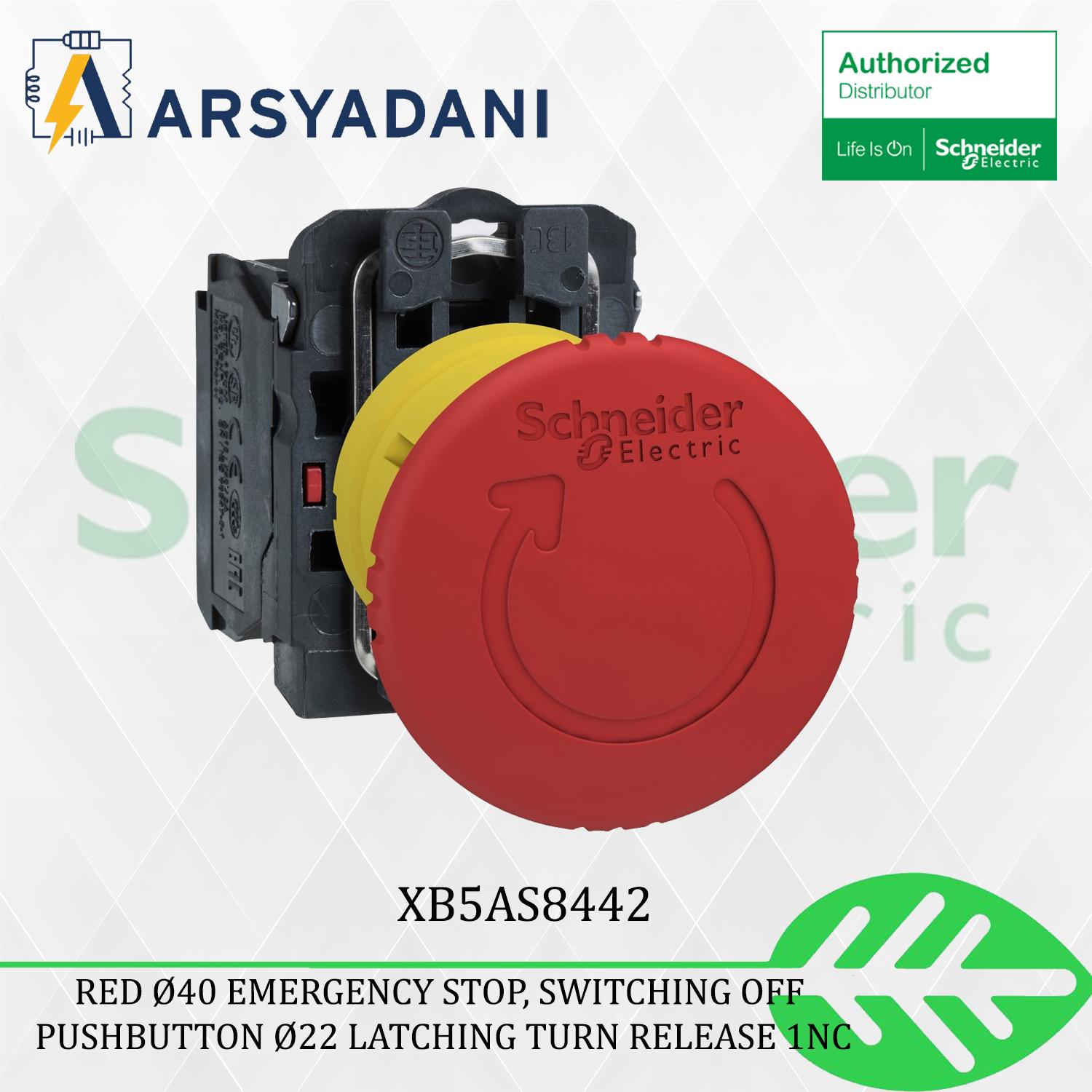

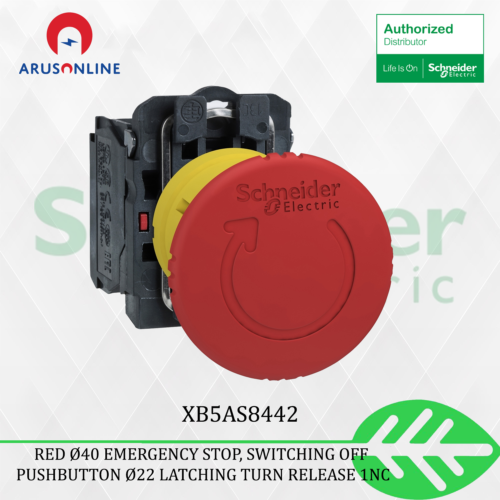

XB5AS8442 – Red 40 Emergency stop, switching off pushbutton 22 latching turn release 1NC
range of product
Harmony XB5
product or component type
Emergency switching off push-button
Emergency stop push-button
device short name
XB5
bezel material
Dark grey plastic
fixing collar material
Plastic
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
trigger action and mechanical latching
reset
Turn to release
Push-pull
operator profile
Red mushroom 40 mm, unmarked
contacts type and composition
1 NC
contact operation
Slow-break
connections – terminals
Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm without cable end conforming to EN 60947-1
device presentation
Complete product
