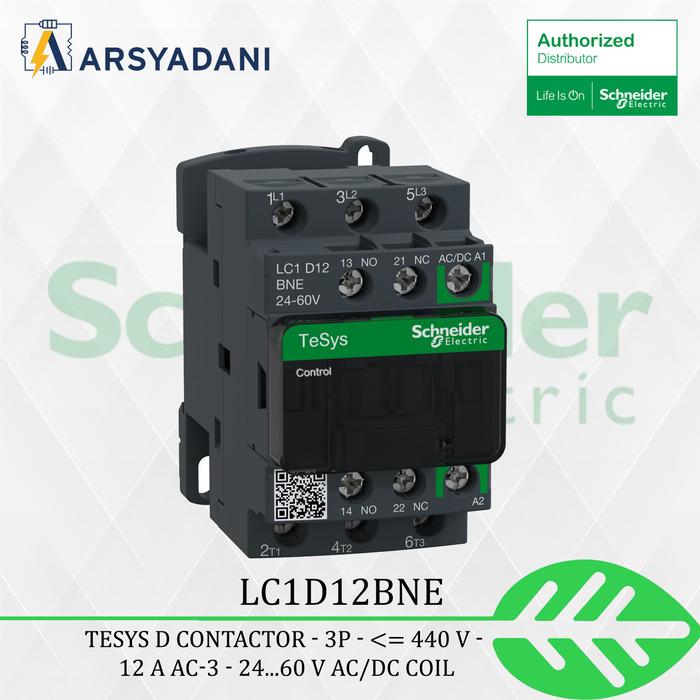

SCHNEIDER – LC1D12BNE – Tesys – C T R -3P-AC3- 440 V 12A

Main Range TeSys TeSys Deca Range of product TeSys Deca Product or component type Contactor Device short name LC1D contactor application Resistive load Motor control Utilisation category AC-3 AC-1 AC-3e poles description 3P [Ue] rated operational voltage Power circuit: lt;= 690 V AC 25…400 Hz [Ie] rated operational current 25 A (at lt;60 °C) at lt;= 440 V AC-1 for power circuit 12 A (at lt;60 °C) at lt;= 440 V AC-3 for power circuit 12 A (at lt;60 °C) at lt;= 440 V AC-3e for power circuit [Uc] control circuit voltage 24…60 V AC 50/60 Hz 24…60 V DC Complementary Motor power kW 3 kW at 220…230 V AC 50 Hz (AC-3) 5.5 kW at 380…400 V AC 50 Hz (AC-3) 5.5 kW at 415 V AC 50 Hz (AC-3) 5.5 kW at 440 V AC 50 Hz (AC-3) 7.5 kW at 500 V AC 50 Hz (AC-3) 7.5 kW at 660…690 V AC 50 Hz (AC-3) 3 kW at 220…230 V AC 50 Hz (AC-3e) 5.5 kW at 380…400 V AC 50 Hz (AC-3e) 5.5 kW at 415 V AC 50 Hz (AC-3e) 5.5 kW at 440 V AC 50 Hz (AC-3e) 7.5 kW at 500 V AC 50 Hz (AC-3e) 7.5 kW at 660…690 V AC 50 Hz (AC-3e) Motor power hp 0.5 hp at 115 V AC 60 Hz for 1 phase motors 2 hp at 230/240 V AC 60 Hz for 1 phase motors 3 hp at 200/208 V AC 60 Hz for 3 phases motors 3 hp at 230/240 V AC 60 Hz for 3 phases motors 7.5 hp at 460/480 V AC 60 Hz for 3 phases motors 10 hp at 575/600 V AC 60 Hz for 3 phases motors Compatibility code LC1D Pole contact composition 3 NO Protective cover With [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit 25 A (at 60 °C) for power circuit
