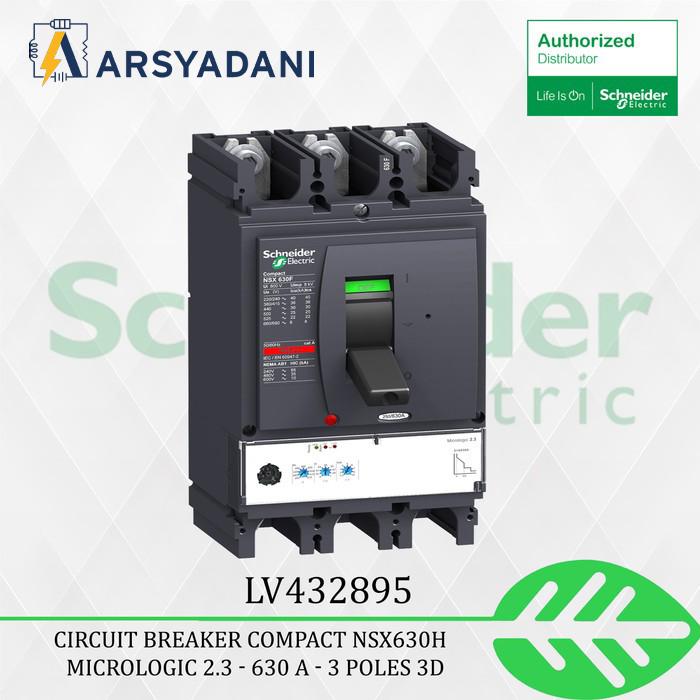

LV432895 – circuit breaker schneider NSX630H Mic 2.3 630 A 3 poles 3d

LV432895 – circuit breaker Compact NSX630H – Mic 2.3 630 A 3 poles 3d

range : ComPact
product name : ComPact NSX
range of product : ComPact NSX400…630
device short name : NSX630H
product or component type : Circuit breaker
device application : Distribution
Number of poles : 3P
protected poles description : 3t
[In] rated current : 630 A at 40 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
85 kA at 240 V AC 50/60 Hz conforming to UL 508
65 kA at 480 V AC 50/60 Hz conforming to UL 508
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 600 V AC 50/60 Hz conforming to UL 508
20 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : H 70 kA 415 V AC
trip unit name : Micrologic 2.3
trip unit technology : Electronic
trip unit protection functions : LSoI
control type : Toggle
Circuit breaker mounting mode : Fixed

Produk dijamin ASLI dan Bergaransi
Jam Kerja: 09.00 – 16.00
Hari Kerja Senin s.d Jum’at (Sabtu, Minggu dan Hari Libur Nasional OFF ~ Tidak ada pengiriman dan slow response)
Barang yang diorder setelah jam 14:00 akan di proses dan dikirim di hari kerja berikut nya (jika ada keperluan delivery khusus dapat chat kami atau wa di 087800017078)
