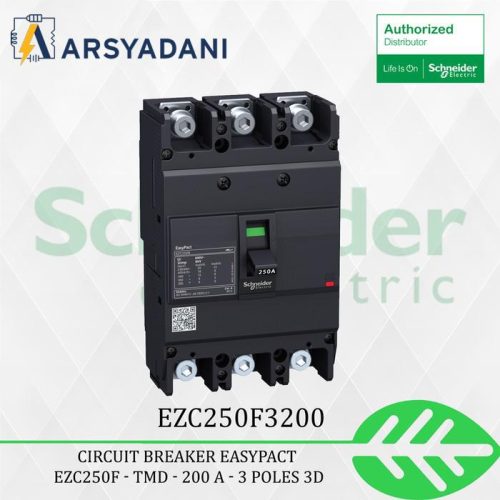

SCHNEIDER – EZC250F3200 – MCCB EASYPACT EZC250F 3P/3d 200A –

EZC250F3200 – MCCB SCHNEIDER Easypact 3P 3d 200A range of product : EasyPact product or component type : Circuit breaker device short name : Easypact EZC250F circuit breaker name : Easypact EZC250F device application : Distribution poles description : 3P protected poles description : 3t network type : AC DC network frequency : 50/60 Hz [In] rated current : 250 A at 40 °C [Ui] rated insulation voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2 [Ue] rated operational voltage : 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2 breaking capacity code : F breaking capacity : 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2 18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service breaking capacity : 9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 125 V DC conforming to IEC 60947-2 2.5 kA at 250 V DC conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 9 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 suitability for isolation : Yes conforming to IEC 60947-2 utilisation category : Category A trip unit name : TM-D trip unit technology : Thermal-magnetic trip unit rating : 200 A at 50 °C protection type : Short-circuit protection Overload protection pollution degree : 3 conforming to IEC 60664-1 3 conforming to IEC 947-1
