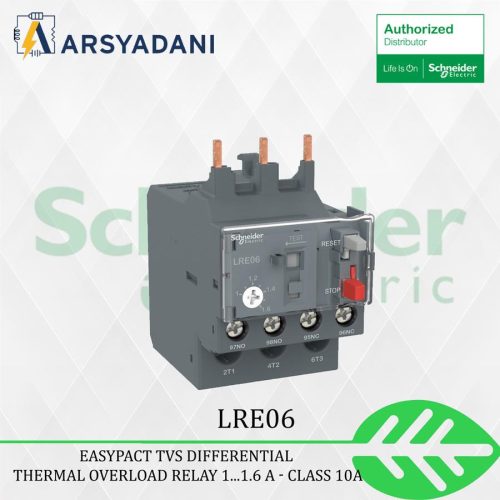

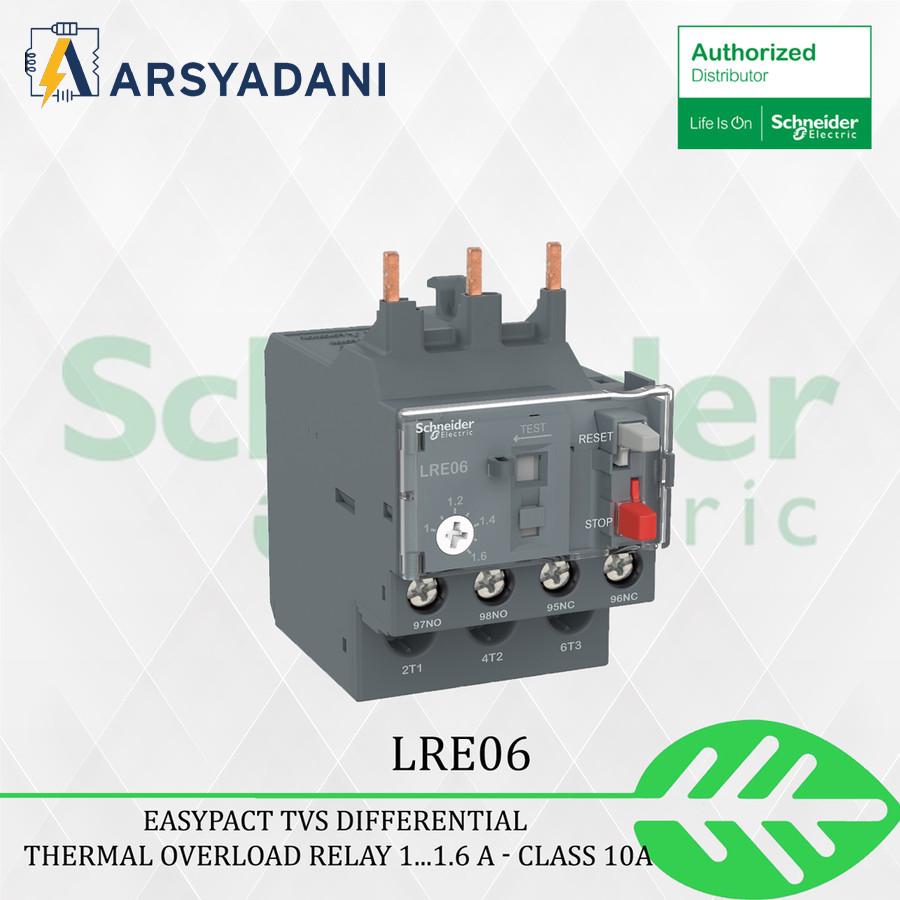

LRE06 – EasyPact TVS differential thermal overload relay 1…1.6 A

LRE06 – EasyPact TVS differential thermal overload relay 1…1.6 A – class 10A

range : EasyPact
product name : EasyPact TVS
product or component type : Differential thermal overload relay
device short name : LRE
relay application : Motor protection
phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
colour : Grey (RAL 7011)
product compatibility : LC1E06…38
network type : AC
network frequency : 50…60 Hz
mounting support :
Under contactor
Plate, with specific accessories
Rail, with specific accessories
thermal overload class : Class 10A conforming to IEC 60947-4-1
signalling function : Relay trip indicator
thermal protection adjustment range : 11.6 A
tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
mechanical robustness :
Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 3 Gn conforming to IEC 60068-2-6
auxiliary contact composition : 1 NO + 1 NC
