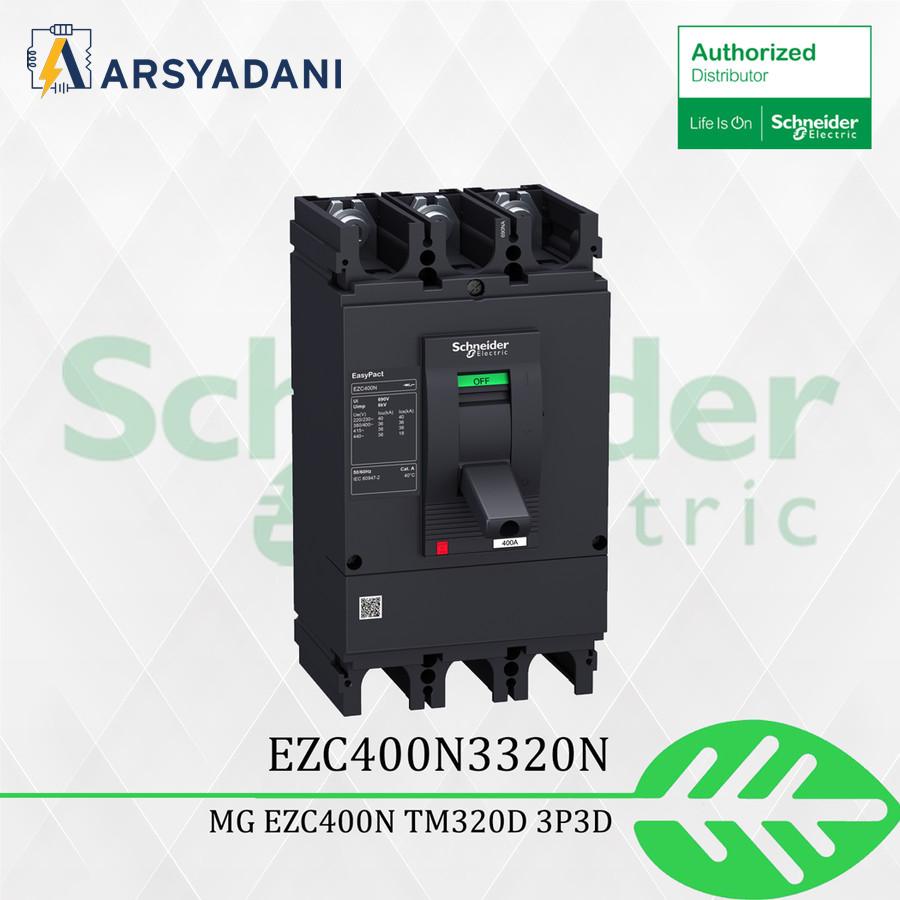

EZC400N3320N – Circuit breaker Easypact EZC400N – TMD – 320 A – 3 poles 3d
range of product : EasyPact
product or component type ; Circuit breaker
device short name : Easypact EZC400N
circuit breaker name : Easypact EZC400N
device application : Distribution
poles description ; 3P
protected poles description : 3t
network type :
AC
DC
network frequency : 50/60 Hz
[In] rated current : 400 A at 40 C
[Ui] rated insulation voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage ;
250 V DC conforming to IEC 60947-2
440 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity code : N
breaking capacity :
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity :
18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
18 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
18 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation : Yes conforming to IEC 60947-2
utilisation category : Category A
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit rating : 320 A at 50 C
protection type :
Overload protection
Short-circuit protection
pollution degree : 3 conforming to IEC 60947
