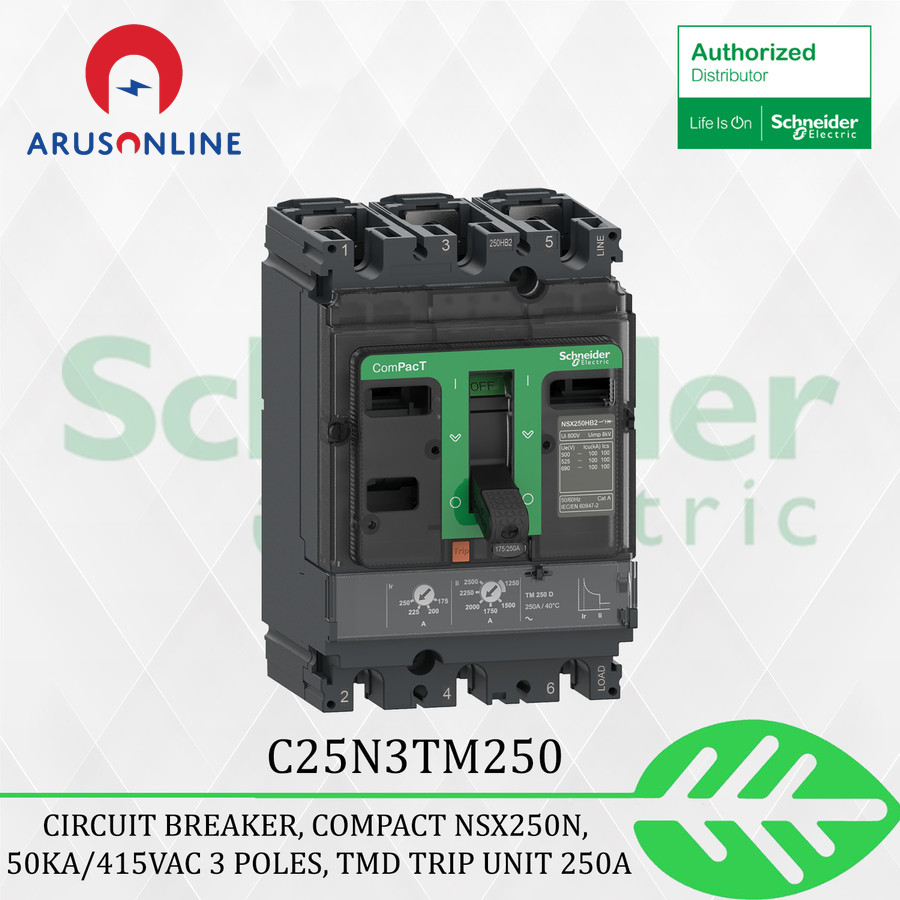

SCHNEIDER – C25N3TM250 – ComPacT NSX 250N, 50kA/415VAC, 3 poles, TMD trip unit 250A

C25N3TM250 – ComPacT NSX250N, 50kA/415VAC, 3 poles, TMD trip unit 250A

range : ComPacT new generation
product name : ComPacT NSX new generation
device short name : NSX250N
product or component type : Circuit breaker
device application : Distribution
poles description : 3P
protected poles description : 3D
[In] rated current : 250 A at 40 °C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
15 kA at 600 V AC 50/60 Hz conforming to UL 508
Performance level : N 50 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions : LI
control type : Toggle
Circuit breaker mounting mode : Fixed
