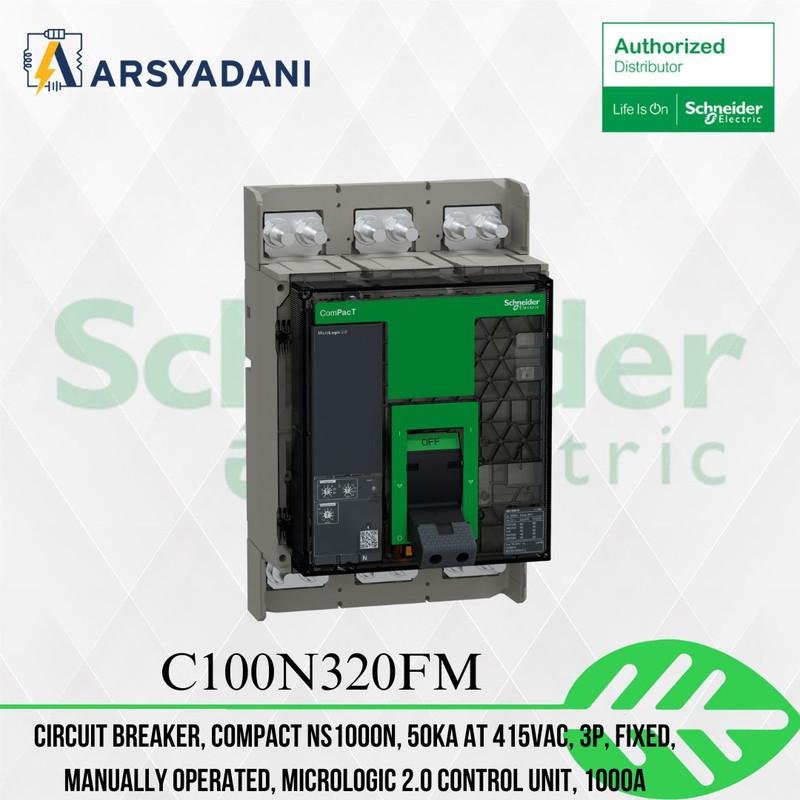

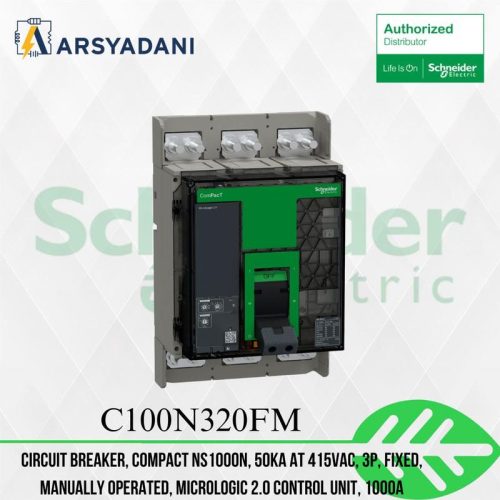

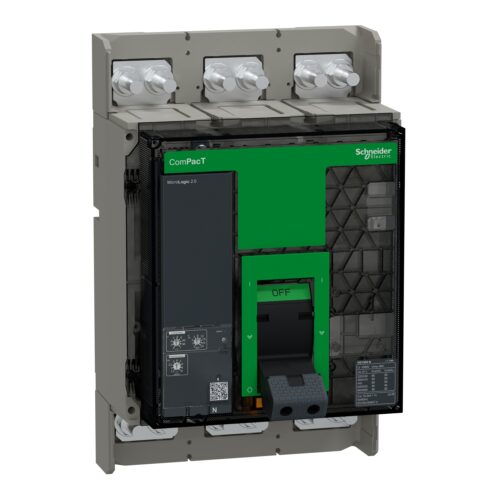

C100N320FM – Com PacT NS1000N, 50kA at 415VAC, 3P, fixed – Schneider

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

Main
Range
ComPacT
Product name
ComPacT NS new generation
Range of produc
ComPacT NS630b…1600 new generation
Product or component type
Circuit breaker
Device application
Distribution
Number of poles
3P
Protected poles description
3D
(In) rated current up to 65 °C
1000 A at 50 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
utilisation category
Category B
[Icu] rated ultimate short-circuit breaking capacity
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Performance level
N 50 kA 415 V AC
Trip unit name
MicroLogic 2.0
Trip unit technology
Electronic
Trip unit protection functions
LI
control type
Manually operated
Mounting mode
Fixed
