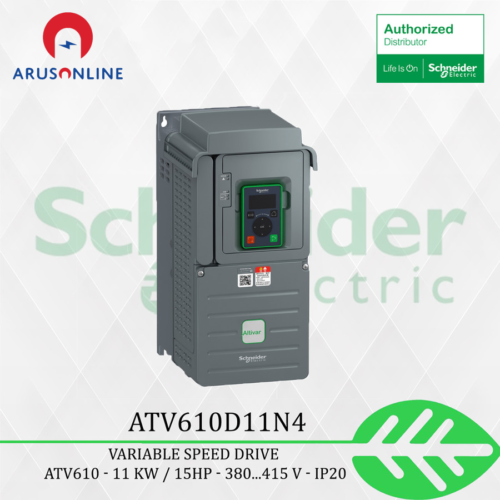

ATV610D11N4 – Variable speed drive ATV610 – 11 kW / 15HP – 380…415 V

ATV610D11N4 – Variable speed drive ATV610 – 11 kW / 15HP – 380…415 V

range of product : Easy Altivar 610
product or component type : Variable speed drive
product specific application : Fan, pump, compressor, conveyor
device short name : ATV610
variant : Standard version
product destination : Asynchronous motors
mounting mode : Cabinet mount
EMC filter : Integrated conforming to EN/IEC 61800-3 category C3 with 50 m
IP degree of protection : IP20
type of cooling : Forced convection
supply frequency : 50…60 Hz +/-5 %
network number of phases : 3 phases
[Us] rated supply voltage : 380…460 V – 15…10 %
motor power kW :
11 kW for normal duty
7.5 kW for heavy duty
motor power hp :
15 hp for normal duty
10 hp for heavy duty
line current :
22 A at 380 V (normal duty)
19.6 A at 460 V (normal duty)
16.4 A at 380 V (heavy duty)
14.6 A at 460 V (heavy duty)
prospective line Isc : 22 kA
apparent power :
15.6 kVA at 460 V (normal duty)
11.6 kVA at 460 V (heavy duty)
continuous output current :
23.5 A at 4 kHz for normal duty
16.5 A at 4 kHz for heavy duty
maximum transient current :
25.9 A during 60 s (normal duty)
24.8 A during 60 s (heavy duty)
asynchronous motor control profile :
Constant torque standard
Optimized torque mode
Variable torque standard
output frequency : 0.00010.5 kHz
nominal switching frequency : 4 kHz
switching frequency : 2…12 kHz adjustable
number of preset speeds : 16 preset speeds
communication port protocol : Modbus serial
option card :
Slot A: communication card, Profibus DP V1
Slot A: digital or analog I/O extension card
Slot A: relay output card
