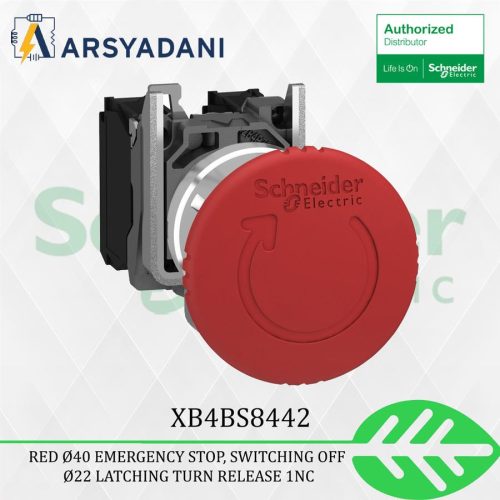

XB4BS8442 – Red Ø40 Emergency stop, switching off Ø22 latching 1NC

XB4BS8442 – Red 40 Emergency stop, switching off 22 latching 1NC

range of product : Harmony XB4
product or component type :
Emergency switching off push-button
Emergency stop push-button
device short name : XB4
bezel material : Chromium plated metal
fixing collar material : Zamak
mounting diameter : 22 mm
shape of signaling unit head : Round
type of operator : trigger action and mechanical latching
head type : Standard
reset : Turn to release
operator profile : Red mushroom 40 mm, unmarked
contact operation : Slow-break
connections – terminals :
Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm without cable end conforming to EN 60947-1
