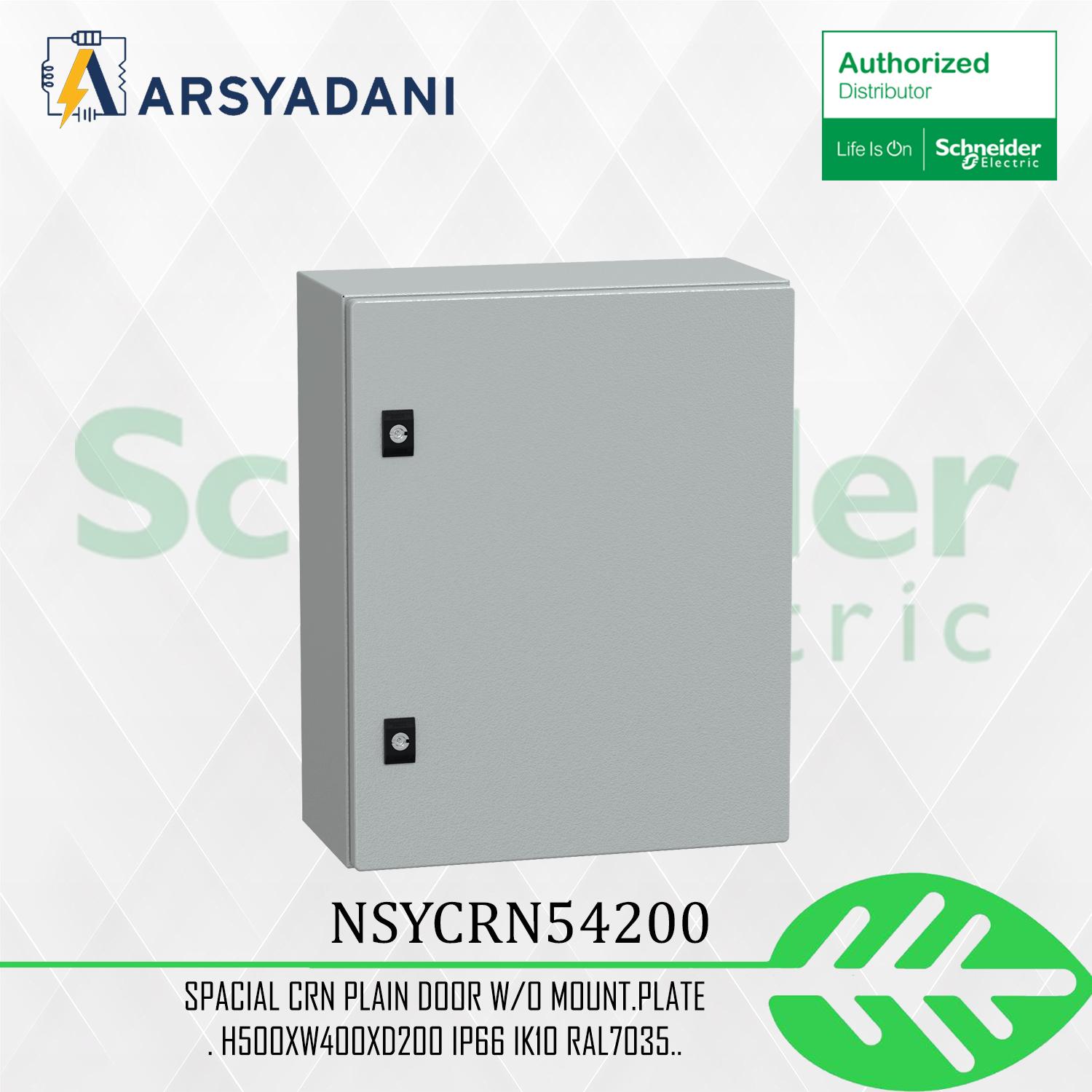

SCHNEIDER – NSYCRN54200 – Spacial CRN plain door w/o mount.plate. H500xW400xD200 IP66 IK10 RAL7035..

Main
Range
PanelSeT
Product name
PanelSeT CRN
Application
Multi-purpose
Category
Compact enclosure
Enclosure nominal height
500 mm
Enclosure nominal width
400 mm
Enclosure nominal depth
200 mm
Installation accessory type
Wall-mounting
Device composition
1 body
1 cable gland plate
1 door
1 lock
Door type
Plain
Mounting plate description
Without mounting plate
Complementary
body type
Back welded with double profile forming a protected sealed area
Sides made from a single folded section
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
lock type
3 mm double-bar lock
Type of gland plate
Standard
accessibility for operation
Front
Removable parts
Door by hinges
Cable gland plate by screws
Material
Body: steel
Surface finish
Epoxy-polyester powder
Colour
Grey (RAL 7035)
Standards
IEC 62208
Product certifications
cUL
UL
DNV-GL
