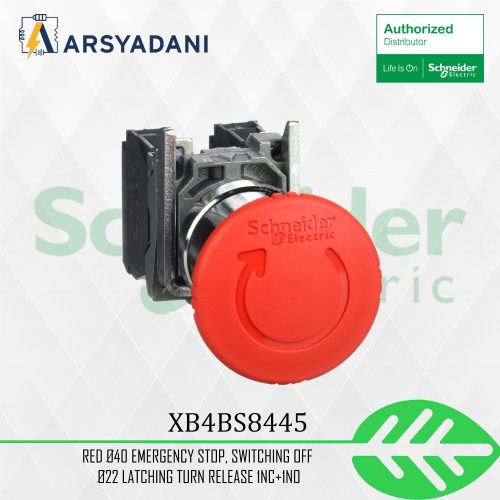

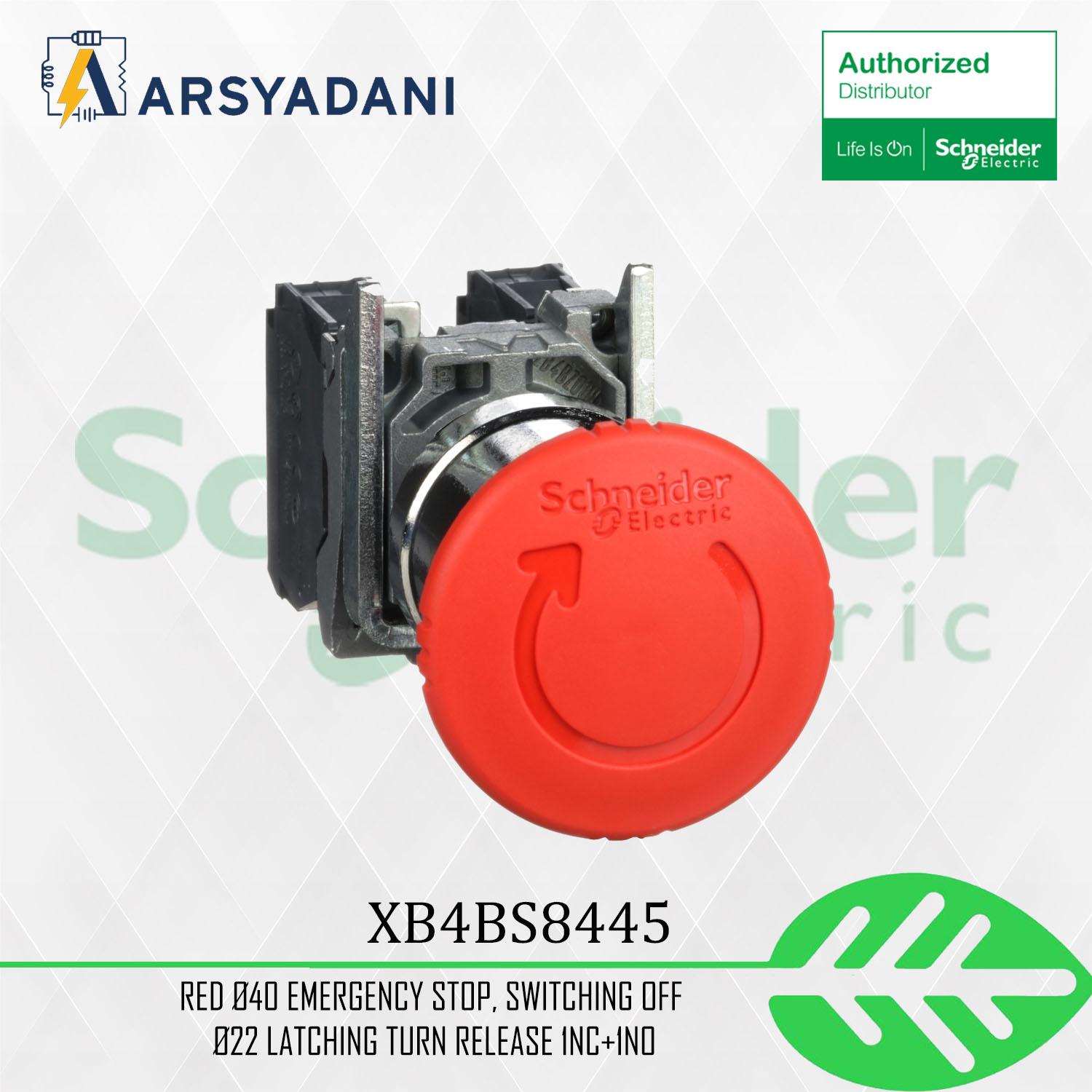

SCHNEIDER – XB4BS8445 – switching off Ø22 latc hing turn release 1NC+1NO – Red Cable

Main
Range of product
Harmony XB4
Product or component type
Emergency switching off push-button
Emergency stop push-button
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
22.5 mm
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
trigger action and mechanical latching
Head type
Standard
Reset
Turn to release
Operator profile
Red mushroom Ø 40 mm, unmarked
Contact operation
Slow-break
Connections – terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Complementary
Height
47 mm
Width
40 mm
Depth
82 mm
Terminals description ISO n°1
(13-14)NO
Net weight
0.13 kg
Resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
Contacts type and composition
1 NO + 1 NC
Contacts usage
Standard contacts
Positive opening
With conforming to IEC 60947-5-1 appendix K
Operating travel
1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
Operating force
44 N
Mechanical durability
300000 cycles
Tightening torque
0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material
Silver alloy (Ag/Ni)
Short-circuit protection
10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate Electrical reliability
Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Device presentation
Complete product
