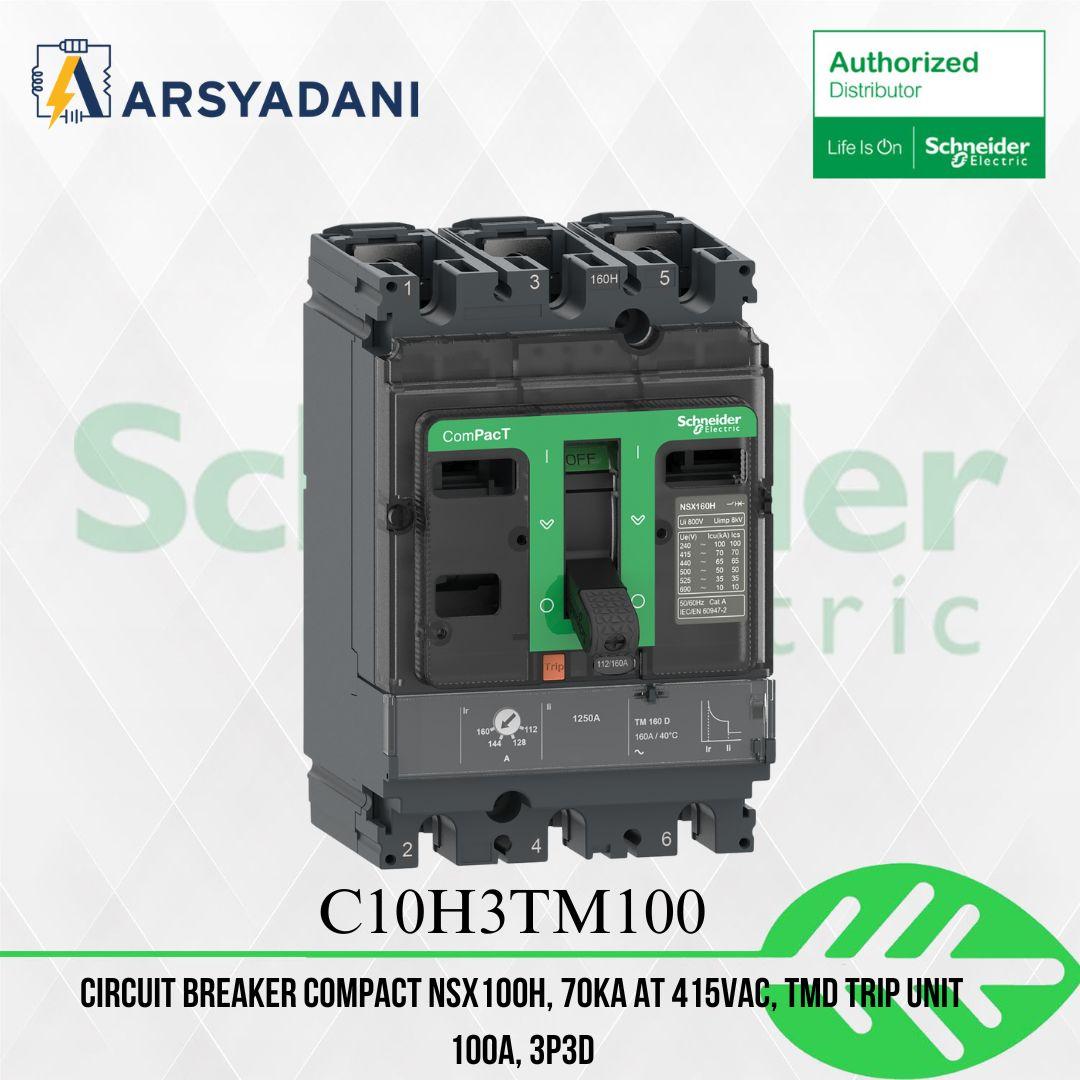

SCHNEIDER – C10H3TM100 – Circuit breaker ComPacT NSX100H, 70kA at 415VAC, TMD trip unit 100A, 3 poles 3d

RangeComPacTproduct nameComPacT NSXDevice short nameNSX100HProduct or component typeCircuit breakerDevice applicationDistributionPoles description3PProtected poles description3D[In] rated current100 A at 40 °C[Ue] rated operational voltage690 V AC 50/60 HzNetwork typeACNetwork frequency50/60 HzSuitability for isolationYes conforming to EN/IEC 60947-2Utilisation categoryCategory A[Icu] rated ultimate short-circuit breaking capacity100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
10 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1Performance levelH 70 kA 415 V ACTrip unit nameTM-DTrip unit technologyThermal-magneticTrip unit protection functionsLIcontrol typeToggleCircuit breaker mounting modeFixed
