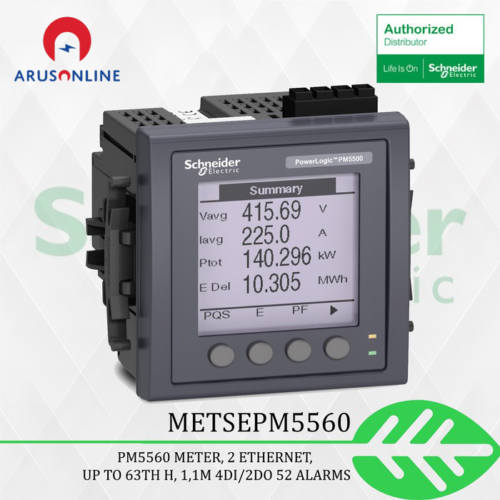

METSEPM5560 – schneider PM5560 powermeter flush mount

METSEPM5560 – PM5560 powermeter w 1mod2eth – upto 63th H – 1,1M 4DI/2DO 52alarms – flush mount

range : PowerLogic
product name : PowerLogic PM5000
device short name : PM5560
product or component type : Power meter
power quality analysis : up to the 63rd harmonic
metering type :
Measured neutral current
Calculated ground current
device application :
Gateway
WAGES metering
Power monitoring
Multi-tariff
type of measurement ;
Current
Voltage
Frequency
Power factor
Energy
Active and reactive power
supply voltage :
125…250 V DC
100…480 V AC 45…65 Hz
network frequency :
60 Hz
50 Hz
[In] rated current :
1 A
5 A
type of network :
3P + N
3P
1P + N
