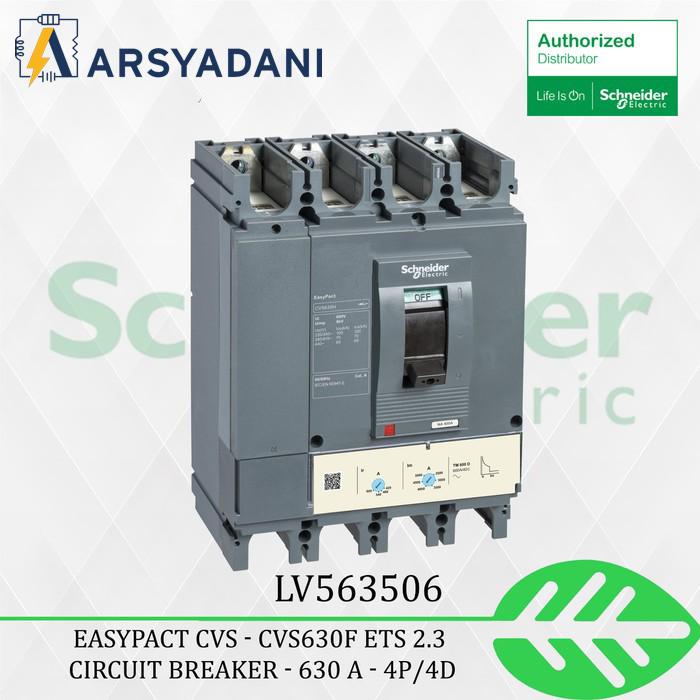

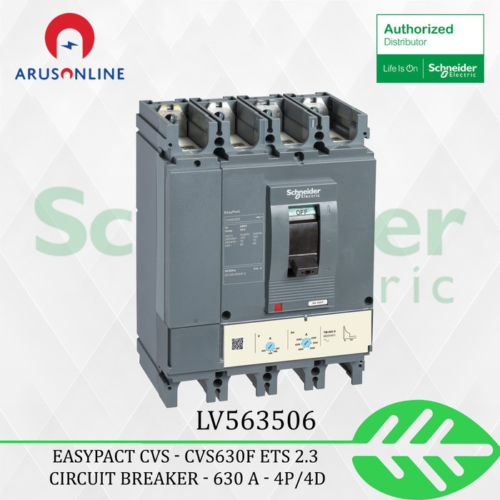

Circuit breaker Schneider Easypact CVS630F ETS 2.3 630A 4P/4d LV563506
range of product : Easypact CVS400…630
product or component type ; Circuit breaker
device short name : CVS630F
device application ; Distribution
poles description ; 4P
protected poles description :
4d
3d + N/2
3d
neutral position : Left
Earth leakage protection (Vigi add on) : Without
[In] rated current : 630 A at 40 C
breaking capacity code : F
network type : AC
[Icu] Breaking capacity :
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category : Category A
trip unit name : ETS 2.3
trip unit technology : Electronic
trip unit rating : 630 A at 40 C
protection type :
Overload protection (long time)
Instantaneous short-circuit protection
Short time short-circuit protection
