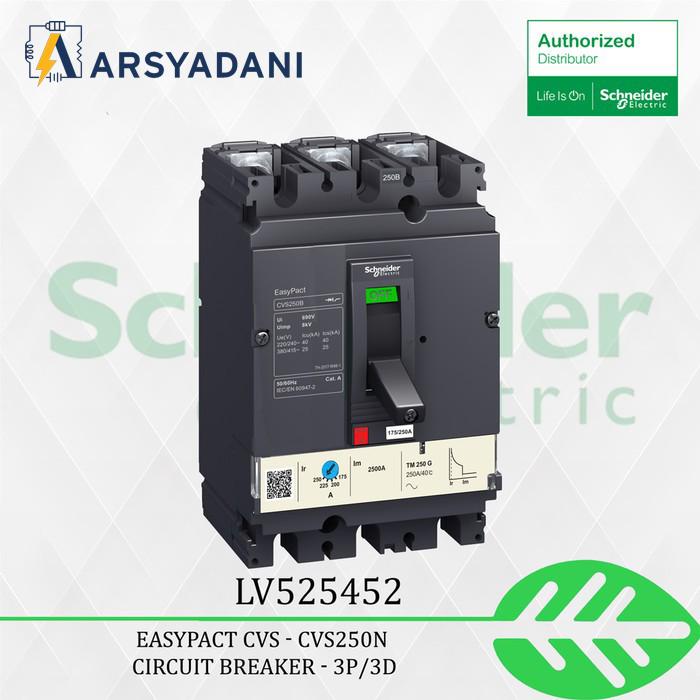

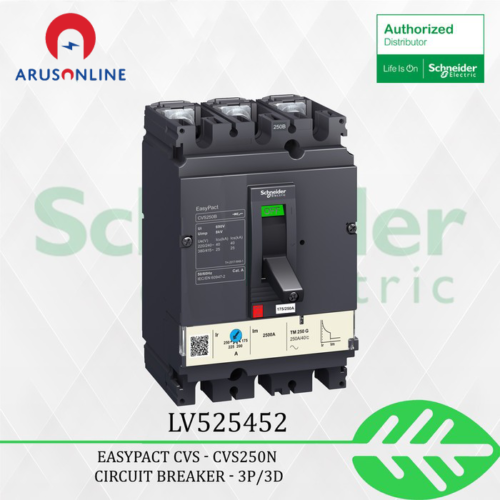

LV525452 – Schneider Electric EasyPact CVS250N TM200D 3P 50kA

LV525452 – Schneider Electric EasyPact CVS MCCB N (50kA) TM200D 3P

range of product ; Easypact CVS100…250
product or component type : Circuit breaker
device short name : CVS250N
device application : Distribution
poles description : 3P
protected poles description : 3d
Earth leakage protection (Vigi add on) : Without
[In] rated current : 250 A at 40 C
breaking capacity code : N
network type : AC
[Icu] Breaking capacity :
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category : Category A
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit rating : 200 A at 40 C
protection type :
Short-circuit protection (magnetic)
Overload protection (thermal)

Produk dijamin ASLI dan Bergaransi
Jam Kerja: 09.00 – 16.00
Hari Kerja Senin s.d Jum’at (Sabtu, Minggu dan Hari Libur Nasional OFF ~ Tidak ada pengiriman dan slow response)
Barang yang diorder setelah jam 14:00 akan di proses dan dikirim di hari kerja berikut nya (jika ada keperluan delivery khusus dapat chat kami atau wa di 087800017078)
