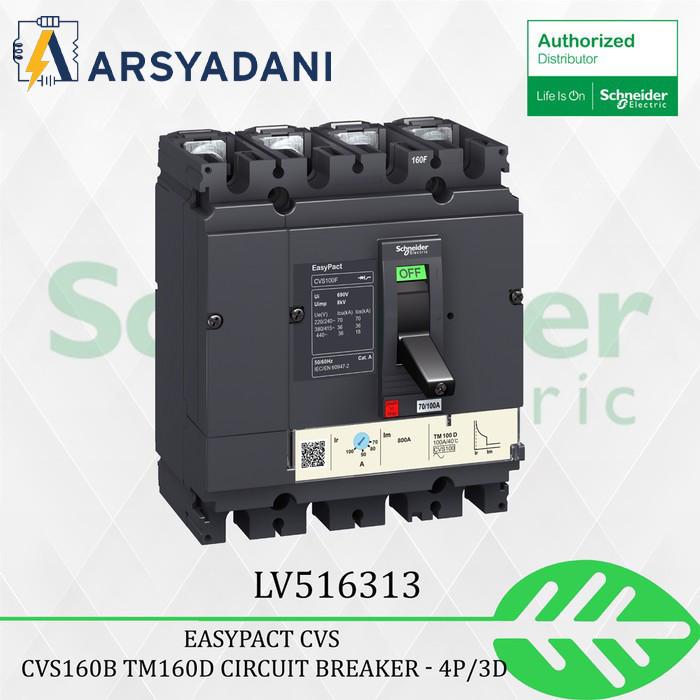

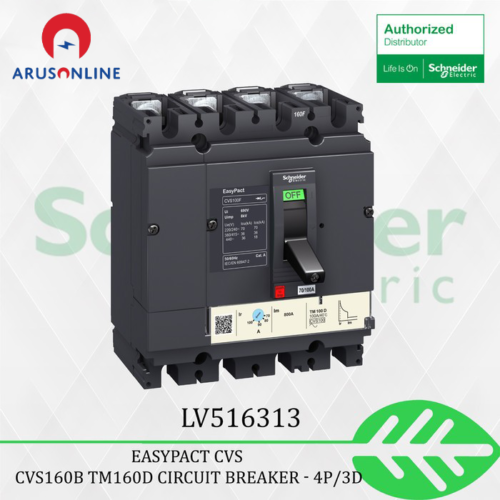

LV516313 – MCCB Schneider CVS160B TM160D 4P3D

range of product: Easypact CVS100…250
product or component type: Circuit breaker
device short name: CVS160B
device application: Distribution
poles description: 4P
protected poles description: 3d
neutral position: Left
Earth leakage protection (Vigi add on): Without
[In] rated current: 160 A at 40 C
breaking capacity code: B
network type: AC
[Icu] Breaking capacity:
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category: Category A
trip unit name: TM-D
trip unit technology: Thermal-magnetic
trip unit rating: 160 A at 40 C
protection type: Overload protection (thermal) / Short-circuit protection (magnetic)
