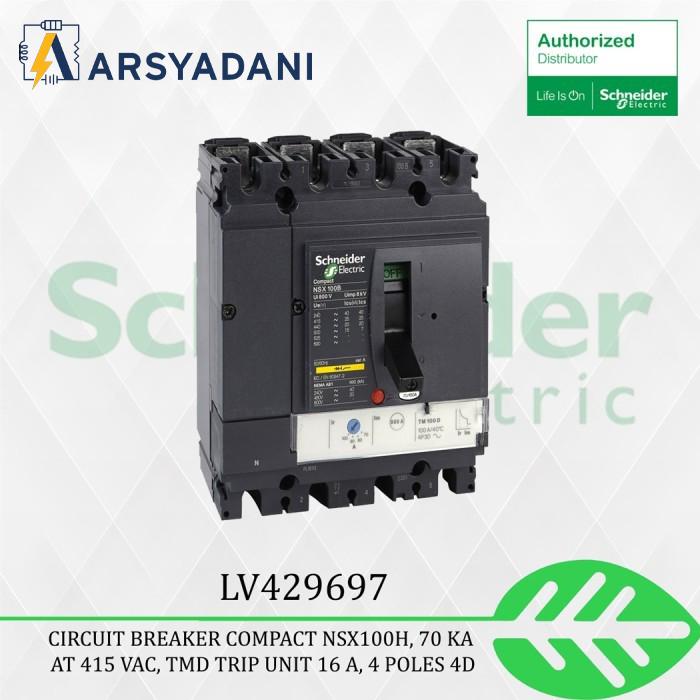

LV429697 -TM16T NSX100H SCHNEIDER, 70KA 415VAC TMD TRIP UNIT 16A 4P4T
range:ComPact
product name:ComPact NSX
range of product:ComPact NSX100…250
device short name:NSX100H
product or component type:Circuit breaker
device application:Distribution
Number of poles:4P
protected poles description:4t
neutral position:Left
[In] rated current:16 A at 40 C
[Ue] rated operational voltage:690 V AC 50/60 Hz
network type:AC
network frequency:50/60 Hz
suitability for isolation:Yes conforming to EN/IEC 60947-2
utilisation category:Category A
[Icu] rated ultimate short-circuit breaking capacity:
10 kA at 600 V AC 50/60 Hz conforming to UL 508
85 kA at 240 V AC 50/60 Hz conforming to UL 508
65 kA at 480 V AC 50/60 Hz conforming to UL 508
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Performance level:H 70 kA 415 V AC
trip unit name:TM-D
trip unit technology:Thermal-magnetic
trip unit protection functions:LI
control type:Toggle
Circuit breaker mounting mode:Fixed
