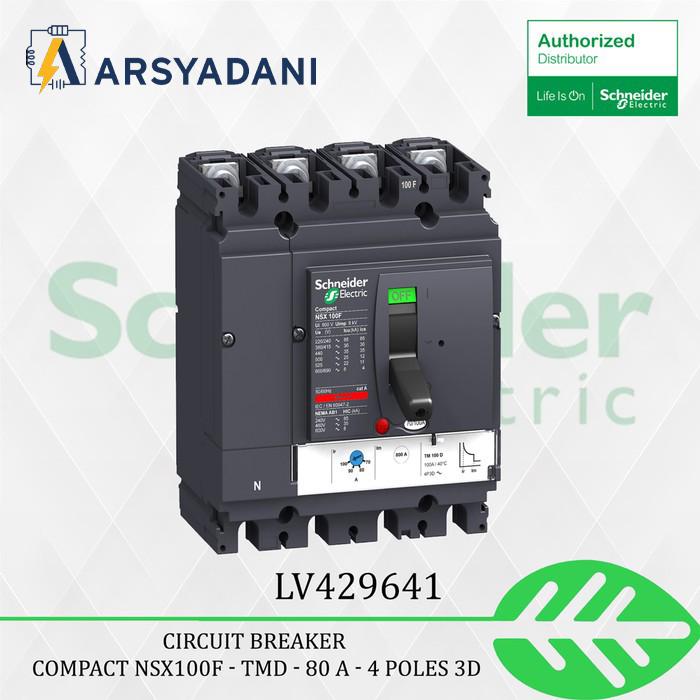

LV429641 – Circuit breaker Compact NSX100F – TMD – 80 A – 4 poles 3d
range : ComPact
product name : ComPact NSX
range of product ; ComPact NSX100…250
device short name : NSX100F
product or component type ; Circuit breaker
device application : Distribution
Number of poles : 4P
protected poles description : 3t
neutral position : Left
[In] rated current : 80 A at 40 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency ; 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
10 kA at 600 V AC 50/60 Hz conforming to UL 508
25 kA at 480 V AC 50/60 Hz conforming to UL 508
85 kA at 240 V AC 50/60 Hz conforming to UL 508
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : F 36 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions : LI
control type : Toggle
Circuit breaker mounting mode : Fixed
Produk dijamin ASLI dan Bergaransi
