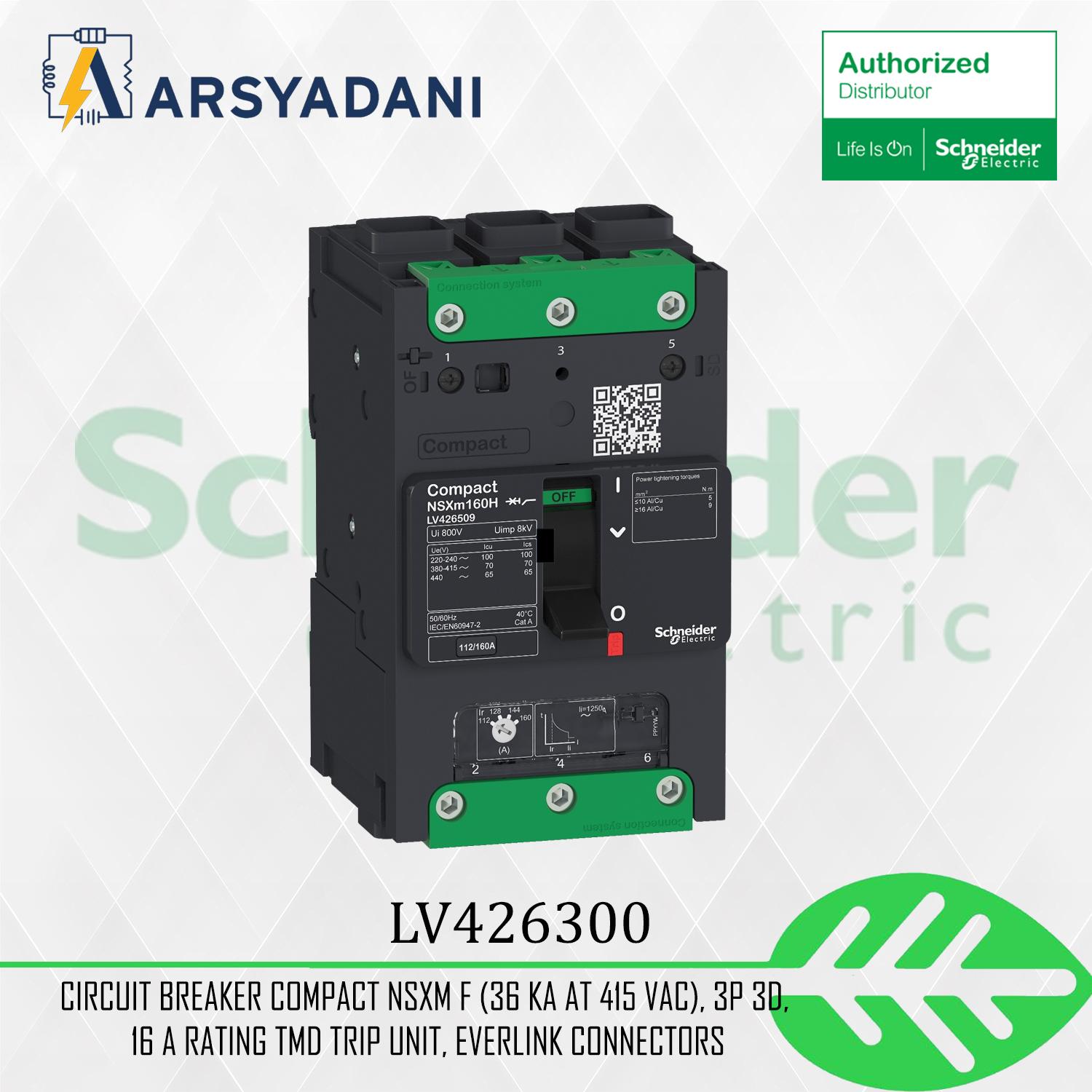

LV426300 – circuit breaker ComPact NSXm F (36 kA at 415 VAC) 3P 16A

circuit breaker ComPact NSXm F (36 kA at 415 VAC), 3P 3d, 16 A rating TMD trip unit, EverLink connectors

range : ComPact
product name : ComPact NSXm
range of product : ComPact NSXm
device short name : NSXm 16F
product or component type : Circuit breaker
device application : Distribution
Protection
Number of poles : 3P
protected poles description : 3D
[In] rated current : 16 A at 40 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
85 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : F 36 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions : LI
control type : Toggle
Circuit breaker mounting mode :
By screws
Clip-on
