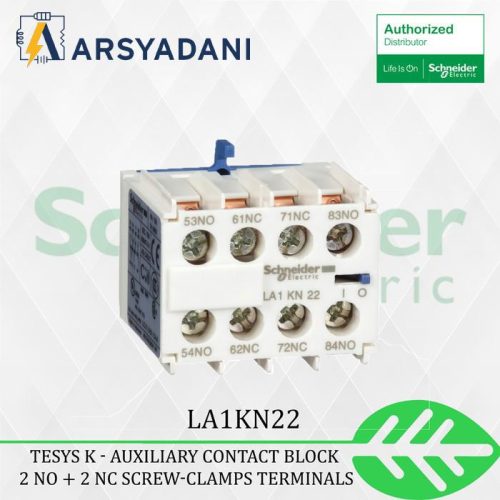

LA1KN22 – Auxiliary contact block schneider 2 NO 2 NC

LA1KN22 – TeSys K – Auxiliary contact block schneider – 2 NO + 2 NC

range : TeSys
range of product : TeSys K
TeSys K control relay
device short name : LA1
product or component type : Auxiliary contact block
mounting location : Front
pole contact composition : 2 NO + 2 NC
Contacts operation : Instantaneous
[Ue] rated operational voltage : <= 690 V AC <= 400 Hz
[Ui] rated insulation voltage :
690 V – for control circuit conforming to BS 5424
690 V – for control circuit conforming to IEC 60947
750 V – for control circuit conforming to VDE 0010 group C
600 V – for control circuit conforming to CSA C22.2
[Ith] conventional free air thermal current : 10 A (at 50 C)
standards :
VDE 0660
IEC 60947
NF C 63-110
BS 5424
product certifications :
UL
CSA
