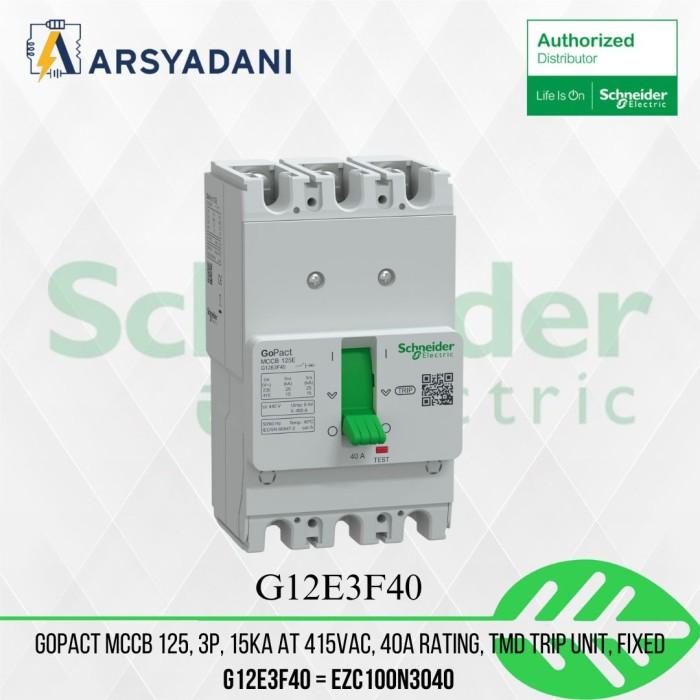

SCHNEIDER – G12E3F40 – GoPact MCCB 125, 3P 15kA at 415VAC, 40A rating, TMD , fixed

Main
range of product GoPact MCCB
product or component type Circuit breaker
Product name GoPact MCCB 125
Device application Distribution
poles description 3P
Protected poles description 3D
[In] rated current 40 A at 40 °C
[Ue] rated operational voltage 415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to EN/IEC 60947-2
Utilisation category Category A
[Icu] rated ultimate short-circuit
breaking capacity
15 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2
25 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2
Performance level E 15 kA 380/415 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI
Control type Toggle
Circuit breaker mounting mode Fixed
