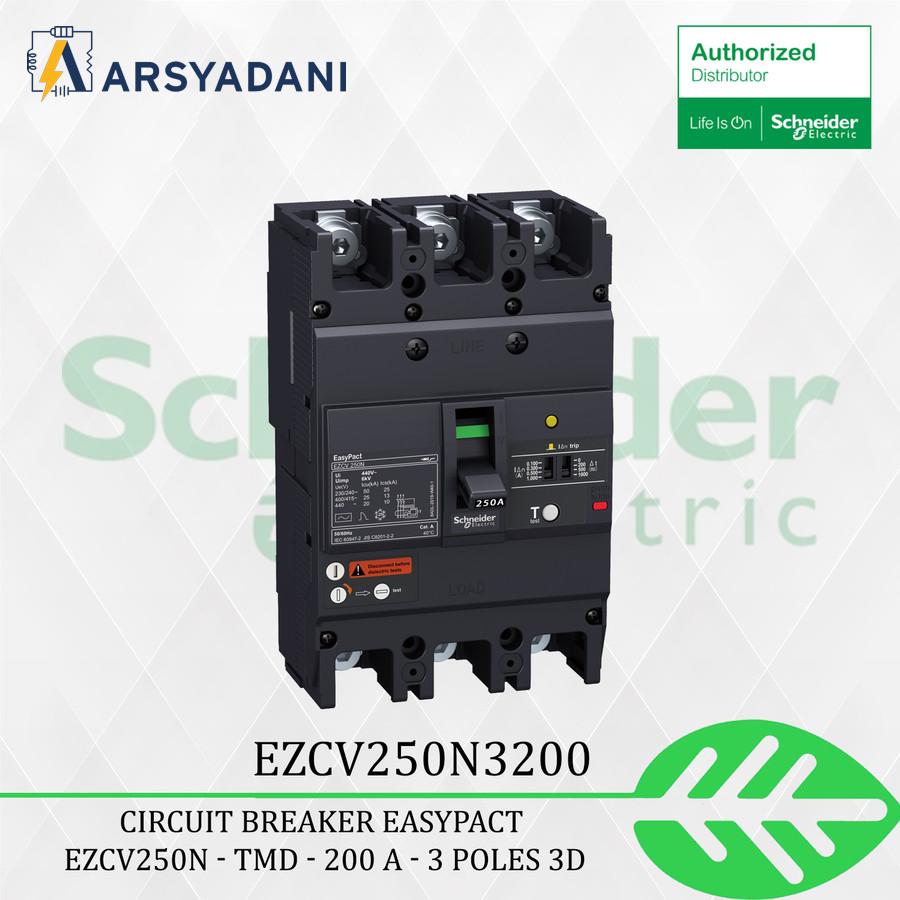

EZCV250N3200 – circuit breaker Easypact EZCV250N – TMD – 200 A – 3P

EZCV250N3200 – circuit breaker Easypact EZCV250N – TMD – 200 A – 3P

range of product : EasyPact
product or component type : Circuit breaker
device short name : Easypact EZCV250N
circuit breaker name : Easypact EZCV250N
device application : Distribution
poles description : 3P
protected poles description : 3t
network type : AC
network frequency : 50/60 Hz
[In] rated current : 200 A at 40 C
[Ui] rated insulation voltage : 440 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage : 440 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity code : N
breaking capacity :
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity :
10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
42.5 kA at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation : Yes conforming to IEC 60947-2
utilisation category : Category A
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit rating : 200 A at 40 C
protection type :
Overload protection
Short-circuit protection
Earth-leakage protection
pollution degree : 3 conforming to IEC 60947
