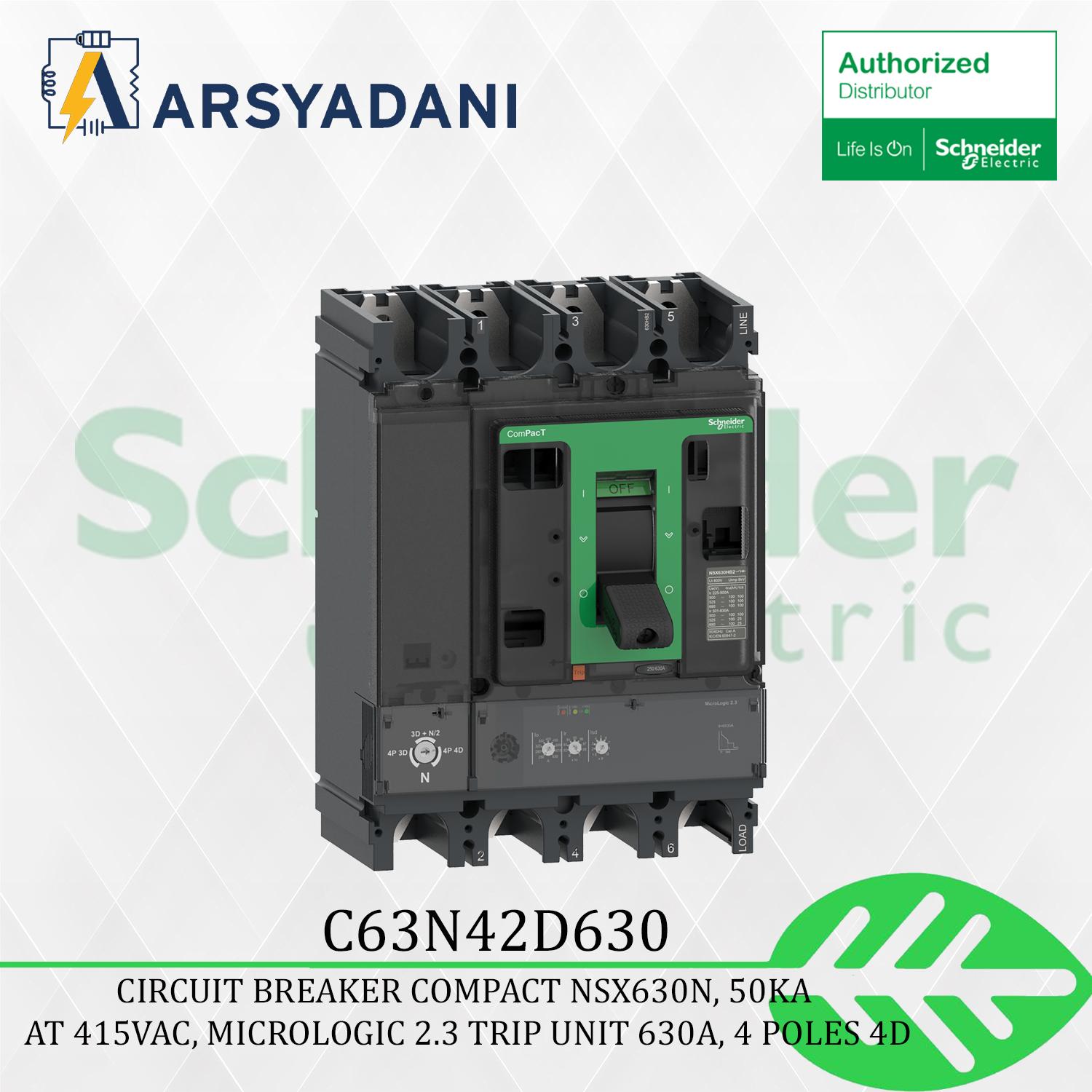

C63N42D630 – NSX630N 50KA AC 4P4D 630A 2.3 – Schneider Electric

Range
ComPacT new generation
Product name
ComPacT NSX new generation
device short name
NSX630N
Product or component type
Circuit breaker
device application
Distribution
Poles description
4P
Protected poles description
4D
3D + N/2
3D
Neutral position
Left
[In] rated current
630 A at 40 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
Network type
AC
Network frequency
50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Utilisation category
Category A
[Icu] rated ultimate short-circuit breaking capacity
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
42 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 480 V AC 50/60 Hz conforming to UL 508
Performance level
N 50 kA 415 V AC
Trip unit name
MicroLogic 2.3
Trip unit technology
Electronic
Trip unit protection functions
LSoI
control type
Toggle
Circuit breaker mounting mode
Fixed
