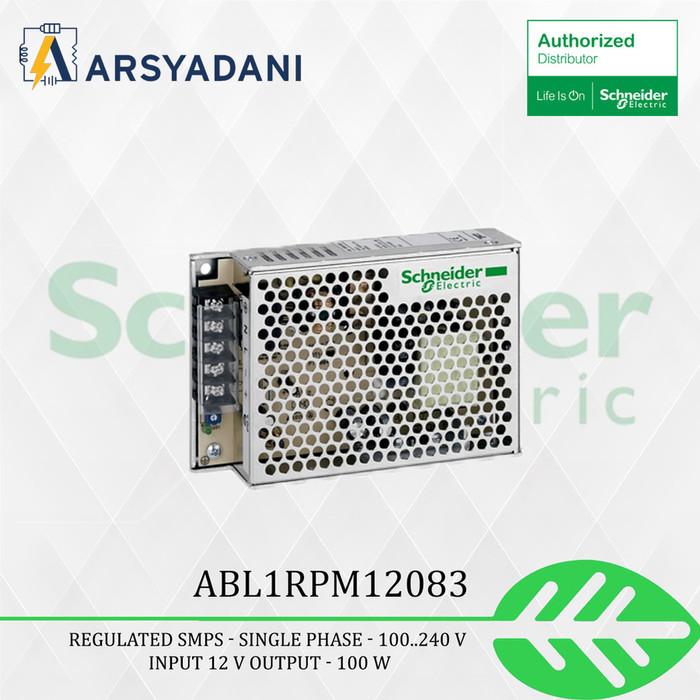

ABL1RPM12083 – Regulated SMPS, single phase, 100..240 V input

ABL1RPM12083 – Regulated SMPS, single phase, 100..240 V input, 12 V output, 100 W

range of product : Phaseo Dedicated
product or component type : Power supply
power supply type : Regulated switch mode
rated power in W : 100 W
input voltage :
100…240 V AC single phase
120…370 V DC
output voltage : 12 V DC
power supply output current : 8.3 A
operating position : Any position
vibration resistance :
2 gn (f= 9150 Hz) conforming to EN/IEC 61131-2
3.5 mm (f= 59 Hz) conforming to EN/IEC 61131-2
name of test :
Conducted interference conforming to EN 61000-4-8 level 4
Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3
Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
Rapid transient conforming to IEC 61000-4-4 level 3
Conducted/radiated emissions conforming to EN 55022 class B
Conducted/radiated emissions conforming to EN/IEC 55011
Emission conforming to EN/IEC 61000-6-3
Primary outage conforming to IEC 61000-4-11
Surge conforming to EN/IEC 61000-4-5
