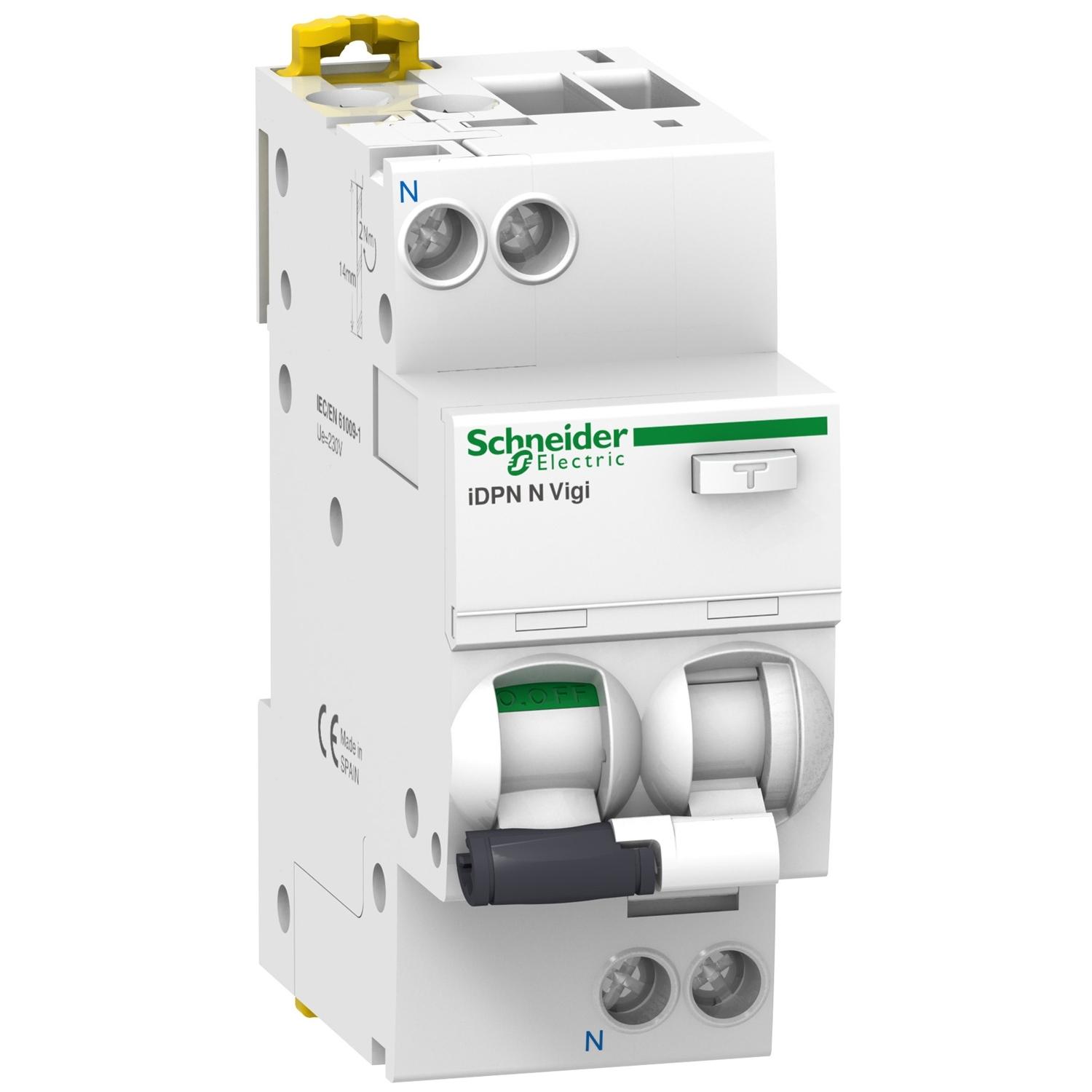

A9D41616 – Acti 9 iDPN N Vigi – RCBO – 1P+N – 16A – C Curve – 6000A – 300mA – type AC – Schneider Electric

RangeActi9Product nameActi9 iDPN VigiProduct or component typeResidual current breaker with overcurrent protection (RCBO)Device short nameiDPN N VigiDevice applicationDistributionPoles description1P + NNumber of protected poles1Neutral positionLeft[In] rated current16 ANetwork typeACNetwork frequency50 HzTrip unit technologyThermal-magneticCurve codeCEarth-leakage sensitivity300 mASuitability for isolationYes conforming to EN/IEC 60947-2

• ComplementaryDevice location in systemOutgoer[Ue] rated operational voltage230…240 V AC 50 HzMagnetic tripping limit5…10 x InResidual current tripping technologyVoltage independentEarth-leakage protection time delayInstantaneousEarth-leakage protection classType ACBreaking capacity6000 A Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1[Ics] rated service breaking capacity6000 A 100 % x Icn at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1Rated breaking and making capacityIdm 6000 A at 230…240 V AC 50 Hz conforming to EN/IEC 61009-2-1Limitation class3 conforming to EN/IEC 61009-2-1[Ui] rated insulation voltage400 V AC 50 Hz[Uimp] rated impulse withstand voltage4 kVContact position indicatorYesControl typeToggleLocal signallingON, OFF, fault tripMounting modeClip-onMounting supportDIN railComb busbar and distribution block compatibilityTop or bottom: YESConnection pitch9 mm between phase and neutral9 mm pitches4Height85 mmWidth36 mmDepth73 mmNet weight125 gColourWhiteMechanical durability20000 cyclesElectrical durability20000 cyclesLocking options descriptionPadlocking deviceConnections – terminalsSingle terminal top or bottom 1…16 mm² rigidSingle terminal top or bottom 1…10 mm² flexibleSingle terminal top or bottom 1…10 mm² flexible with ferruleWire stripping length15 mm for top or bottom connectionTightening torque2 N.m top or bottomEarth-leakage protectionIntegrated
