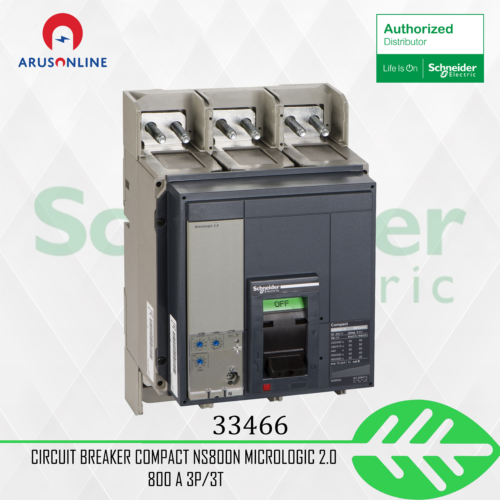

33466 – circuit breaker Compact NS800N Micrologic 2.0 800 A 3P/3T
range : ComPact
product name : ComPact NS
range of product : ComPact NS630b…1600
device short name : Compact NS800N
product or component type : Circuit breaker
device application : Distribution
Number of poles : 3P
protected poles description : 3D
(In) rated current up to 65 C : 800 A at 50 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category B
[Icu] rated ultimate short-circuit breaking capacity :
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : N 50 kA 415 V AC
trip unit name : Micrologic 2.0
trip unit technology : Electronic
trip unit protection functions : LI
control type :
Rotary handle
Toggle
Circuit breaker mounting mode : Fixed
