range of product | Easy Harmony XA2 |
---|---|

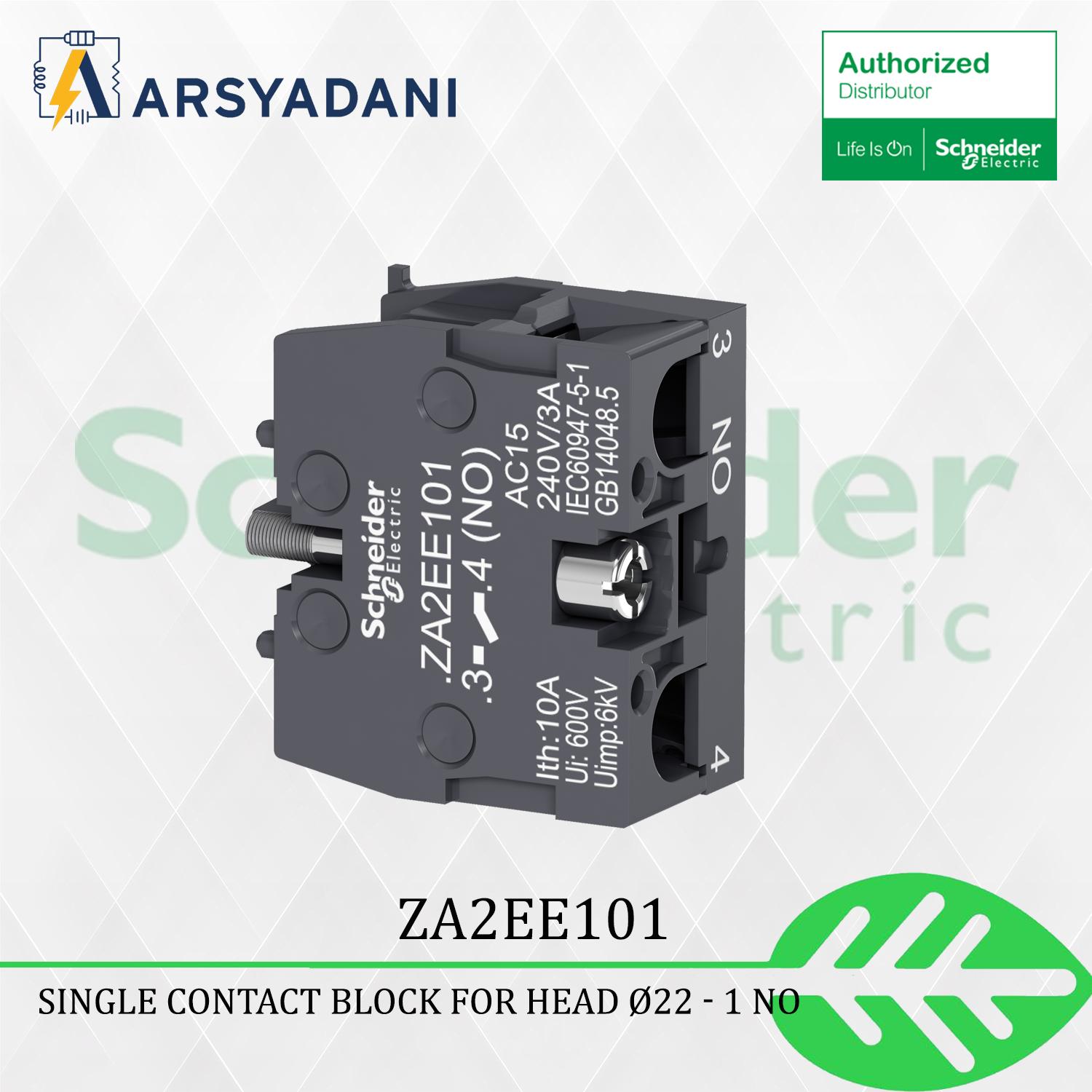

product or component type | Contact block |
Device short name | ZA2E |
Contact operation | Slow-break |
---|---|
Contact block type | Single |
Contacts usage | Standard contacts |
Positive opening | Without |
Mechanical durability | 1500000 cycles |
Connections – terminals | , <= 2 x 1.5 mm² conforming to IEC 60947-1 , <= 1 x 2.5 mm² conforming to IEC 60947-1 , >= 1 x 0.5 mm² conforming to IEC 60947-1 Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
Tightening torque | 0.8 N.m |
Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
[Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
[Ie] rated operational current | 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
Electrical durability | 500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
Contacts type and composition | 1 NO |
