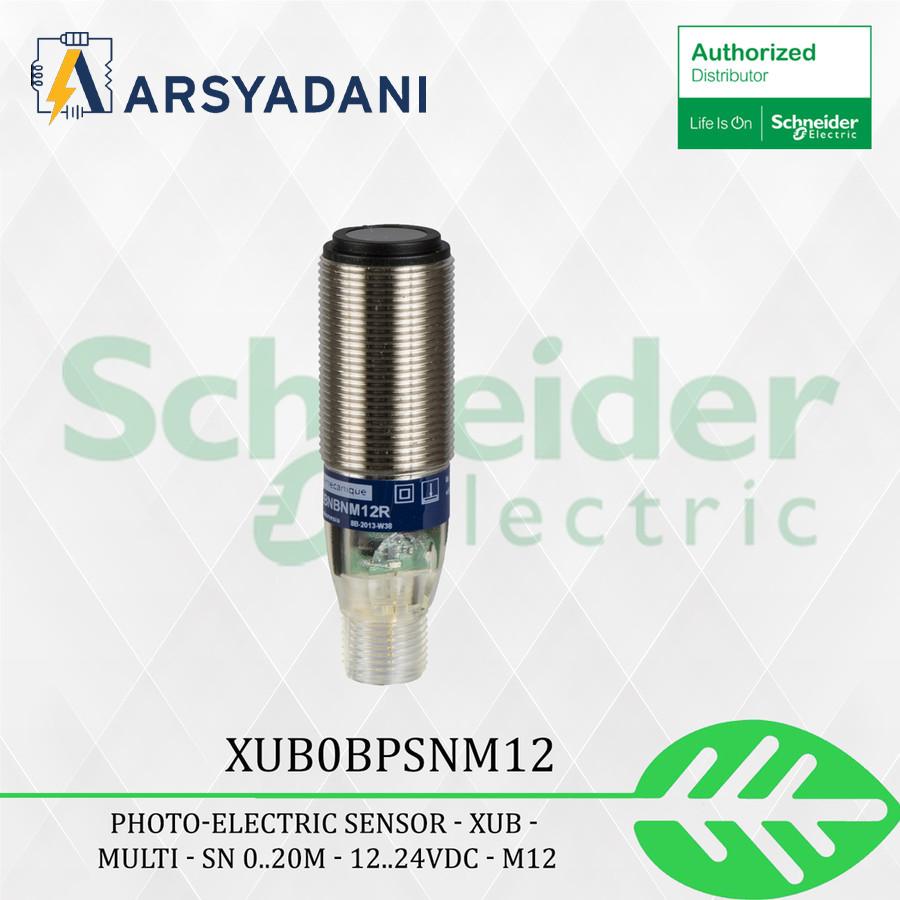

XUB0BPSNM12 – Photo-electric sensor – XUB – multi – Sn 0..20m – 12..24

XUB0BPSNM12 – Photo-electric sensor – XUB – multi – Sn 0..20m – 12..24

range of product : OsiSense XU
series name : General purpose multimode
electronic sensor type : Photo-electric sensor
sensor name : XUB
sensor design : Cylindrical M18
detection system : Multimode
material : Metal
line of sight type : Axial
type of output signal : Discrete
supply circuit type : DC
wiring technique : 3-wire
discrete output type : PNP
discrete output function : 1 NO or 1 NC programmable
electrical connection : 1 male connector M12, 4 pins
product specific application
–
emission :
Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex
[Sn] nominal sensing distance :
3 m polarised reflex need reflector XUZC50
20 m thru beam need a transmitter XUB0BKSNM12T
0.12 m diffuse with background suppression
0.3 m diffuse
