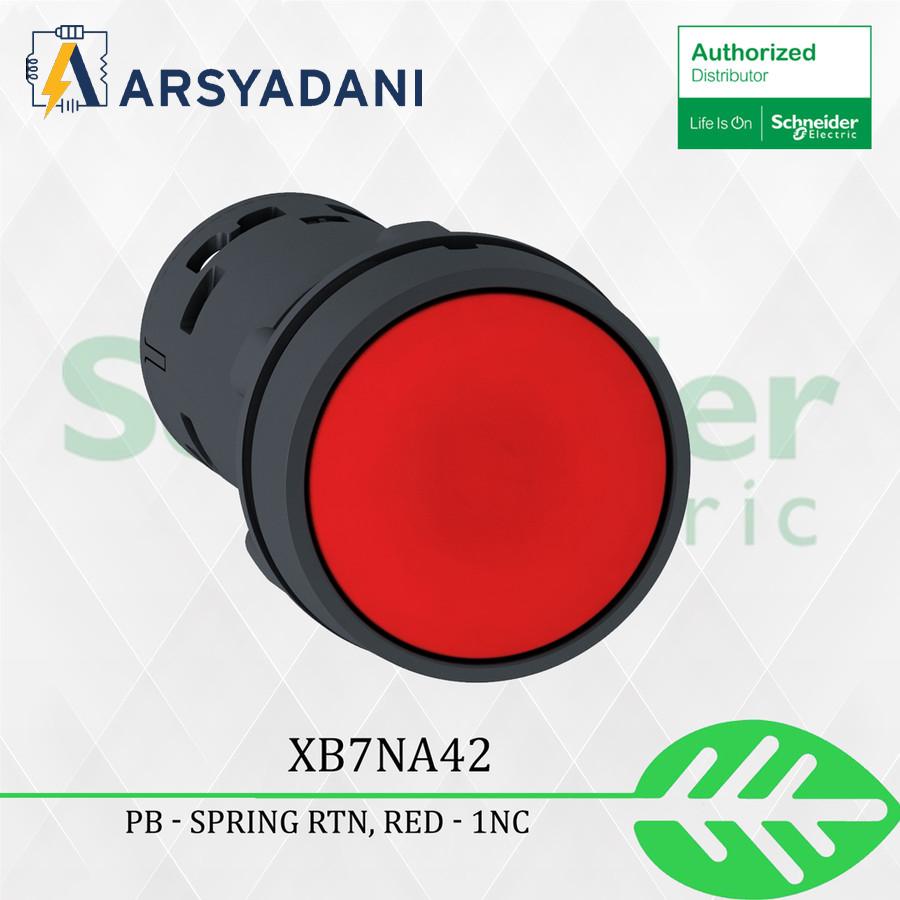

XB7NA42 – Push Button schneider – Spring Rtn, red – 1NC

XB7NA42 – Push Button schneider – Spring Rtn, red – 1NC

range of product ; Harmony XB7
product or component type ; Push-button
device short name ; XB7
mounting diameter ; 22 mm
IP degree of protection :
IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529
shape of signaling unit head ; Round
type of operator : spring return
operator profile : Red flush, unmarked
contacts type and composition : 1 NC
connections – terminals :
Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.34…2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
device presentation : Monolithic product
