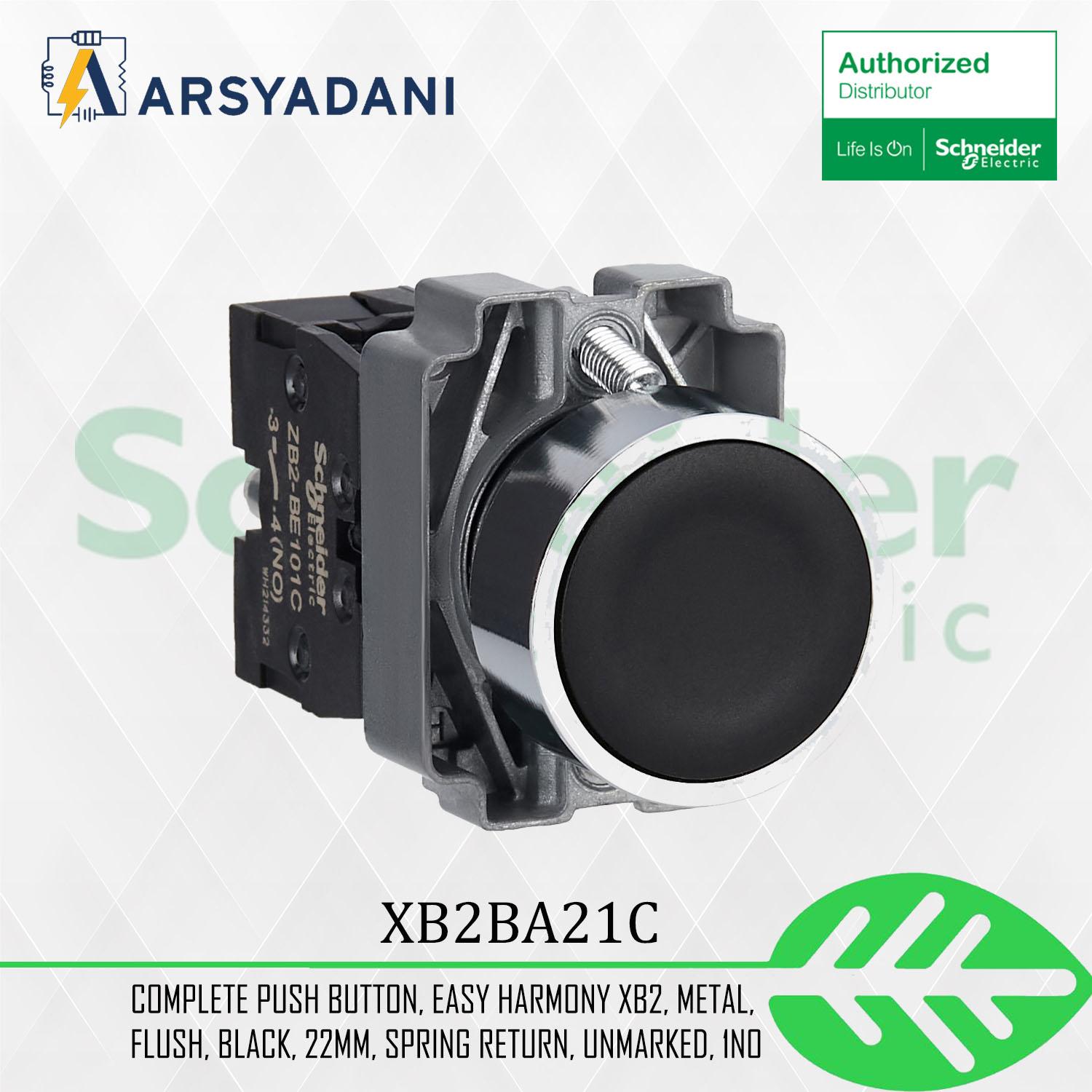

SCHNEIDER – Easy Harmony XB2, metal, flush, black, 22mm, spring return, unmarked, 1NO –

Main
Range of product
Easy Harmony XB2
Product or component type
Complete push-button
Device presentation
Complete product
Device short name
XB2
Bezel material
Chromium plated metal
Mounting diameter
22.5 mm
Sale per indivisible quantity
1
Head type
Standard
Complementary
Fixing collar material
Zamak
Terminals description ISO n°1
(13-14)NO
Overvoltage category
Class I conforming to IEC 60536
Operating position
Any position
Cap/operator or lens colour
Black
Product compatibility
ZB2..C
Device mounting
Fixing hole – diameter: 22.5 mm
Fixing center
>= 30 x 40 mm (1…6 mm thick panel) zamak – thickness: 1…6 mm
Fixing mode
Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m
marking
Unmarked
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Black flush, unmarked
Contacts type and composition
1 NO
Contact operation
Slow-break
Contacts usage
Standard contacts
Positive opening
Without
Operating travel
2.88 mm (NO changing electrical state)
5.0 mm (total travel)
Mechanical durability
3000000 cycles
Connections – terminals
Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm
Tightening torque
0.8…1.0 N.m
Shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material
Silver alloy (Ag/Ni)
Short-circuit protection
10 A gL fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-4
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-4
Electrical durability
1000000 cycles, AC-15, 3 A at 240 V, operating rate 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate Electrical reliability
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Height
30 mm
Width
40 mm
Depth
54.5 mm
Net weight
0.07 kg
Customizable
No
Type of operator
Spring return
