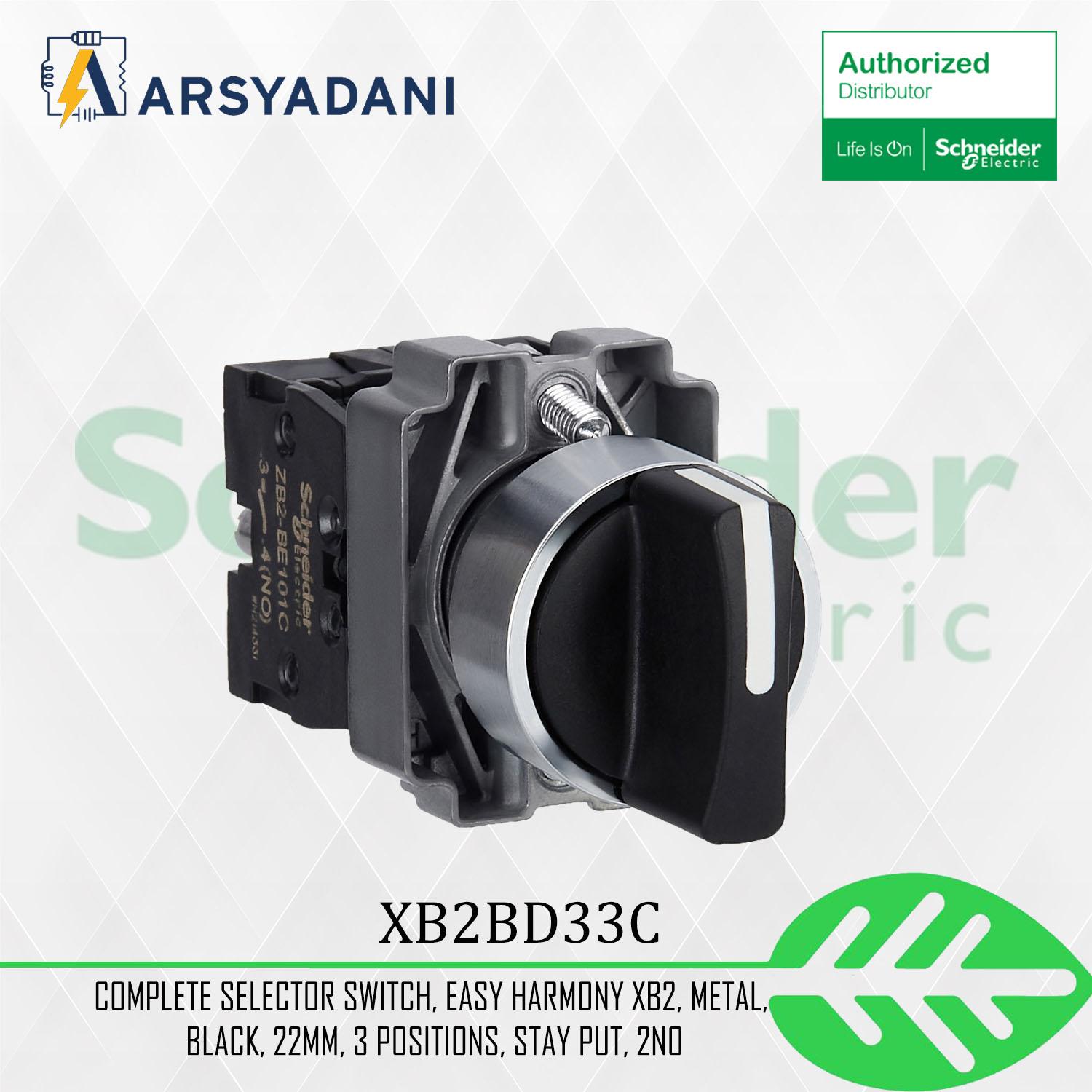

SCHNEIDER – Easy Harmony XB2, metal, black, 22mm, 3 positions, stay put, 2NO – XB2BD33C

Main
Range of product
Easy Harmony XB2
Product or component type
Complete selector switch
Device presentation
Complete product
Device short name
XB2
Fixing collar material
Zamak
Head type
Standard
Complementary
Bezel material
Chromium plated metal
Mounting diameter
22.5 mm
Sale per indivisible quantity
1
Overvoltage category
Class I conforming to IEC 60536
Shape of signaling unit head
Round
Type of operator
stay put
Operator profile
Black standard handle
Operating position
Any position
Operator position information
3 positions
Contacts type and composition
2 NO
Contact operation
Slow-break
Mechanical durability
1000000 cycles
Compatibility code
XB2
Device mounting
Fixing hole – diameter: 22.5 mm
Fixing center
>= 30 x 40 mm (panel) – thickness: 1…6 mm
Fixing mode
Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m
Connections – terminals
Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm
Tightening torque
0.8…1.0 N.m
Shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material
Silver alloy (Ag/Ni)
[Ith] conventional free air thermal current
10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
Electrical durability
1000000 cycles, AC-15, 3 A at 240 V, operating rate 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate Electrical reliability
Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Width
40 mm
Height
30 mm
Depth
70 mm
Net weight
0.1 kg
Contacts usage
Standard contacts
Cap/operator or lens colour
Black
Product compatibility
ZB2..C
Customizable
No
Operator profile
Standard handle
Type of operator
Stay put
