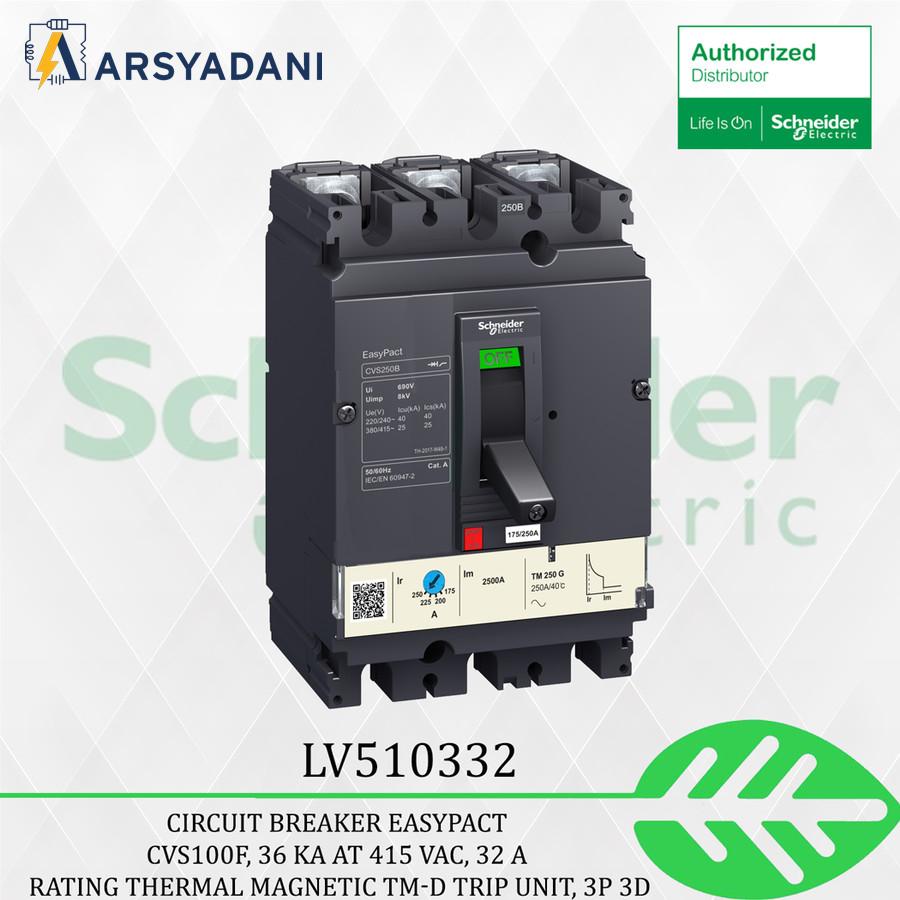

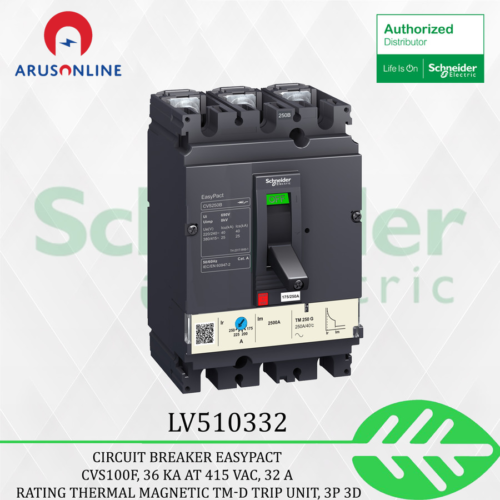

Easypact CVS – CVS100F TM32D circuit breaker – 3P/3d
range of product : EasyPact CVS100…250
product or component type : Circuit breaker
device short name : CVS100F
device application : Distribution
poles description : 3P
protected poles description : 3D
Earth leakage protection (Vigi add on) : Without
[In] rated current : 32 A at 40 C
breaking capacity code : F
network type : AC
[Icu] Breaking capacity :
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category : Category A
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit rating : 32 A at 40 C
protection type :
Overload protection (thermal)
Short-circuit protection (magnetic)
