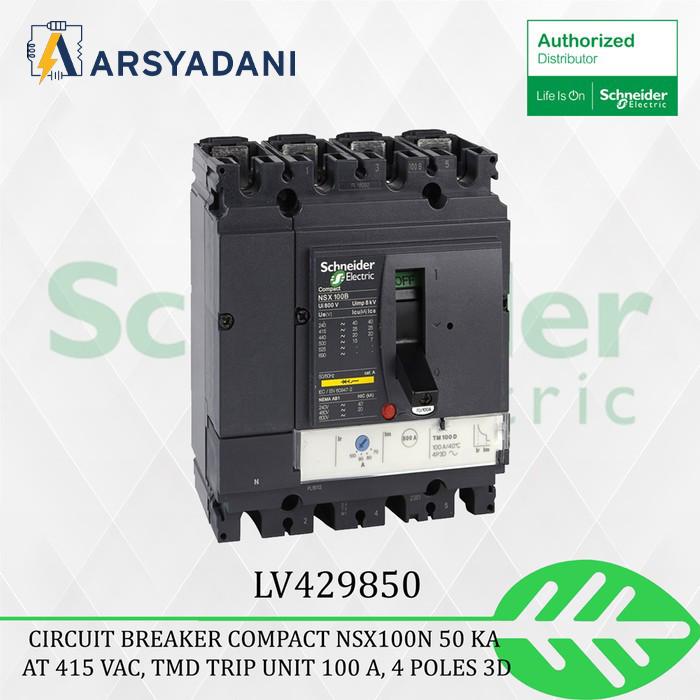

LV429850 – Schneider Circuit breaker NSX100N TMD 100 A 4 poles 3d

LV429850 – Circuit breaker Schneider NSX100N TMD 100 A 4 poles 3d

range : ComPact
product name : ComPact NSX
range of product : ComPact NSX100…250
device short name : NSX100N
product or component type : Circuit breaker
device application : Distribution
Number of poles : 4P
protected poles description : 3t
neutral position : Left
[In] rated current : 100 A at 40 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
85 kA at 240 V AC 50/60 Hz conforming to UL 508
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
20 kA at 600 V AC 50/60 Hz conforming to UL 508
50 kA at 480 V AC 50/60 Hz conforming to UL 508
36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : N 50 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions ; LI
control type : Toggle
Circuit breaker mounting mode : Fixed
