Home » Shop » LV426309 – circuit breaker ComPact NSXm F (36 kA at 415 VAC), 3P 160A

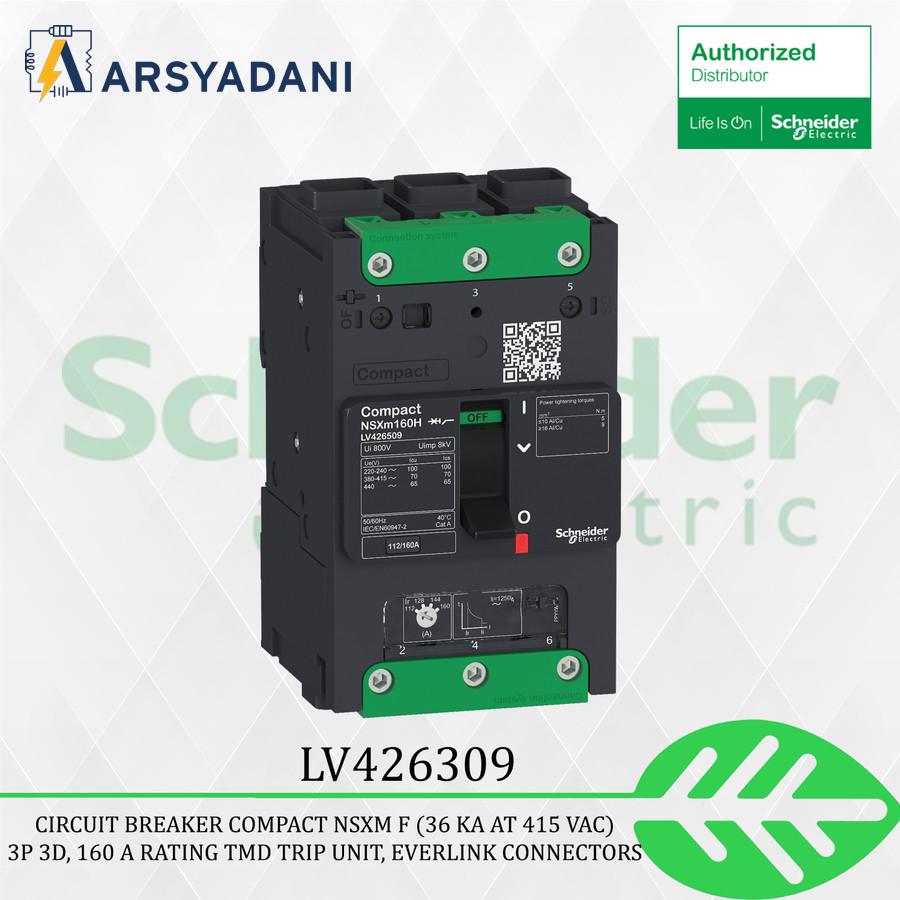

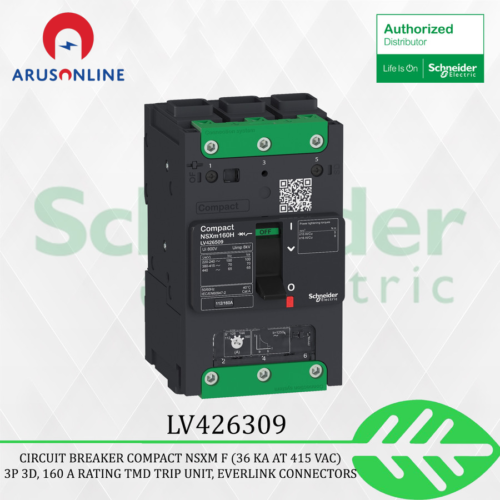

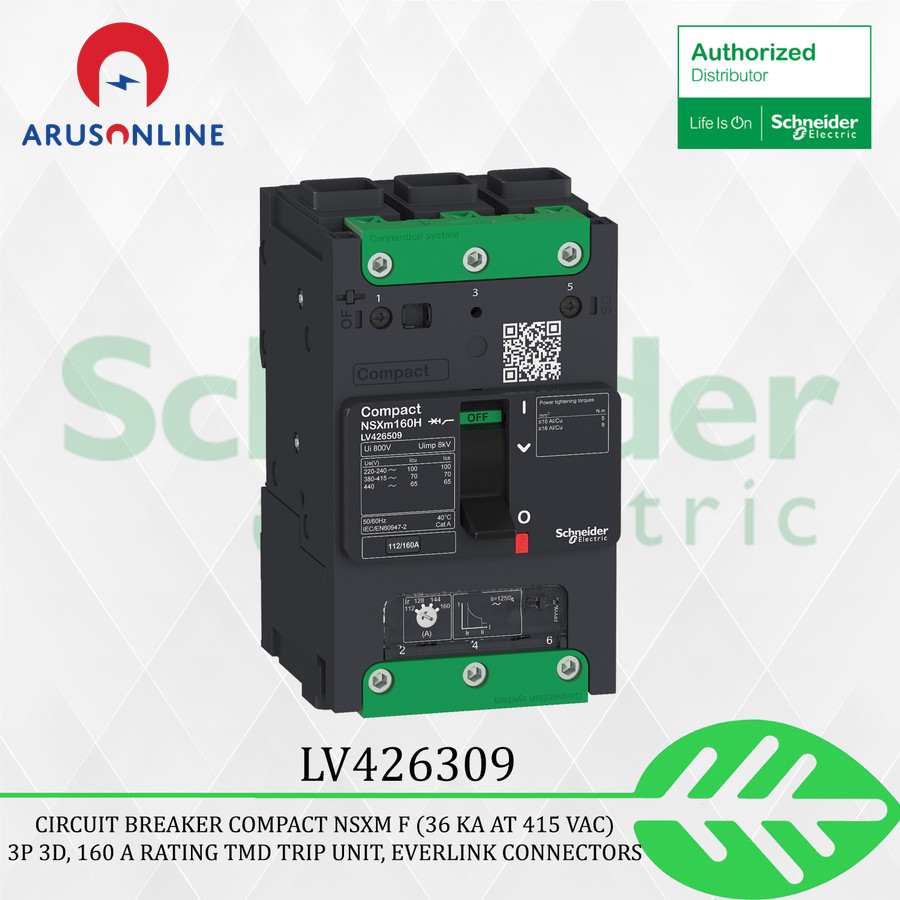

LV426309 – circuit breaker ComPact NSXm F (36 kA at 415 VAC), 3P 160A

Rp1.476.082

62% Off
Close
Price Summary
  • Rp3.904.980
  • Rp1.476.082
  • 62%
  • Rp1.476.082
  • Overall you save Rp2.428.898 (62%) on this product
In Stock
Compare
SKU: LV426309 Kategori:
Deskripsi

LV426309 – circuit breaker ComPact NSXm F (36 kA at 415 VAC), 3P 160A rating TMD trip unit, EverLink connectors

range : ComPact
product name : ComPact NSXm
range of product : ComPact NSXm
device short name : NSXm 25F
product or component type : Circuit breaker
device application :
Protection
Distribution
Number of poles : 3P
protected poles description : 3D
[In] rated current : 160 A at 40 C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity ;
85 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : F 36 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions : LI
control type : Toggle
Circuit breaker mounting mode :
By screws
Clip-on

Produk dijamin ASLI dan Bergaransi
BISA CREATE FAKTUR PAJAK
Jam Kerja: 09.00 – 16.00
Hari Kerja Senin s.d Jum’at (Sabtu, Minggu dan Hari Libur Nasional OFF ~ Tidak ada pengiriman dan slow response)
Barang yang diorder setelah jam 14:00 akan di proses dan dikirim di hari kerja berikut nya (jika ada keperluan delivery khusus dapat chat kami atau wa di 087800017078)

Informasi Tambahan
Berat 1,3 kg
