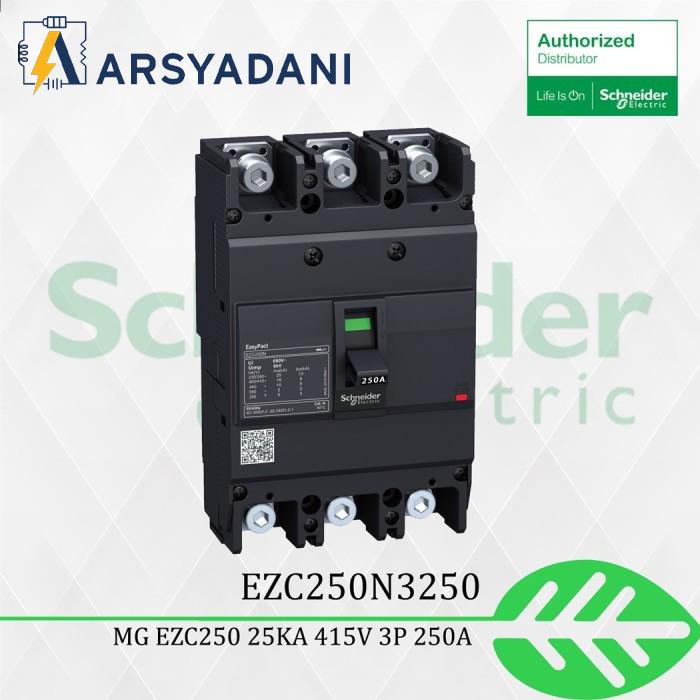

EZC250N3250 – MCCB SCHNEIDER EZC250 3P 250A 25 KA 415V

EZC250N3250 – MG EZC250 – 25 KA – 415V – 3P – 250A

range of product ; EasyPact
product or component type : Circuit breaker
device short name : Easypact EZC250N
circuit breaker name : Easypact EZC250N
device application : Distribution
poles description : 3P
protected poles description : 3t
network type :
DC
AC
network frequency : 50/60 Hz
[In] rated current : 250 A at 40 C
[Ui] rated insulation voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage :
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
breaking capacity code ; N
breaking capacity :
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 125 V DC 1P conforming to IEC 60947-2
20 kA Icu at 250 V DC 2P conforming to IEC 60947-2
25 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity :
10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 125 V DC conforming to IEC 60947-2
10 kA at 250 V DC conforming to IEC 60947-2
25 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
4 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation : Yes conforming to IEC 60947-2
utilisation category : Category A
trip unit name ; TM-D
trip unit technology : Thermal-magnetic
trip unit rating : 250 A at 50 C
protection type :
Short-circuit protection
Overload protection
pollution degree :
3 conforming to IEC 60664-1
3 conforming to IEC 947-1
