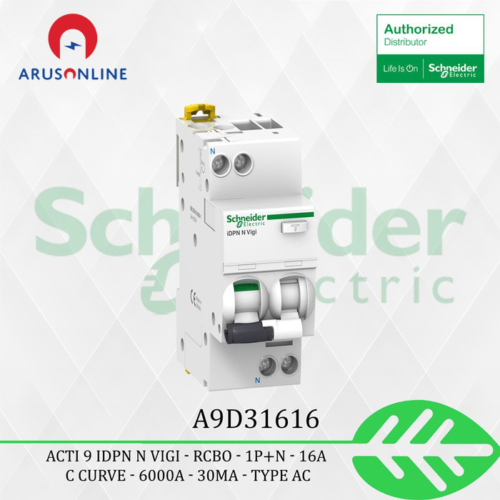

A9D31616 – Acti 9 iDPN N Vigi RCBO 1P+N 16A C Curve 30mA – type AC
range : Acti 9
product name : Acti 9 iDPN Vigi
product or component type : Residual current breaker with overcurrent protection (RCBO)
device short name : IDPN N Vigi
device application : Distribution
poles description : 1P + N
number of protected poles : 1
neutral position : Left
[In] rated current : 16 A
network type : AC
trip unit technology : Thermal-magnetic
curve code : C
earth-leakage sensitivity : 30 mA
earth-leakage protection time delay : Instantaneous
earth-leakage protection class : Type AC
breaking capacity : 6000 A Icn at 220…240 V AC 50 Hz conforming to EN/IEC 61009-2-1
suitability for isolation : Yes conforming to EN/IEC 60947-2
